Victron BlueSolar MPPT 150 Charge Controllers
Victron BlueSolar MPPT 150 Charge Controllers
Victron BlueSolar MPPT Solar Charge Controllers - Image 2

Victron BlueSolar MPPT Solar Charge Controllers

Price range: $47.60 through $640.05

-

IRU 2 Day Shipping

SKU: N/A Categories: ,

Description

NOTE: If you require Bluetooth, you should order the SMARTSOLAR not BLUESOLAR model.



Victron Energy BlueSolar MPPT Features:

Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.



Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.



Outstanding conversion efficiency

  • No cooling fan.
  • Maximum efficiency exceeds 98%.



Flexible charge algorithm

  • Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).



Extensive electronic protection

  • Over-temperature protection and power derating when temperature is high.
  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.



Internal temperature sensor

  • Compensates absorption and float charge voltage for temperature



Real-time data display options:

  • Apple and Android smartphones, tablets and other devices: see the VE.Direct to Bluetooth Smart dongle
  • Color Control GX panel: CCGX







Part Number/s:
SCC010010050R BlueSolar MPPT 75/10
SCC010015050R BlueSolar MPPT 75/15
SCC010015200R BlueSolar MPPT 100/15
SCC110020170R BlueSolar MPPT 100/20
SCC020030200 BlueSolar MPPT 100/30
SCC020050200 BlueSolar MPPT 100/50
SCC115045222 BlueSolar MPPT 100/45
SCC010060200 BlueSolar MPPT 150/60-Tr
SCC010060300 BlueSolar MPPT 150/60-MC4
SCC010070200-BS150/70-Tr BlueSolar MPPT 150/70-Tr
SCC010070300 BlueSolar MPPT 150/70-MC4
SCC020035000 BlueSolar MPPT 150/35
SCC115110420 BlueSolar MPPT 150/100-Tr VE.Can
SCC125070441 BlueSolar MPPT 250/70-Tr VE.Can
SCC125110441 BlueSolar MPPT 250/100-Tr VE.Can

BlueSolar MPPT 100|30 & 100|50 Manual

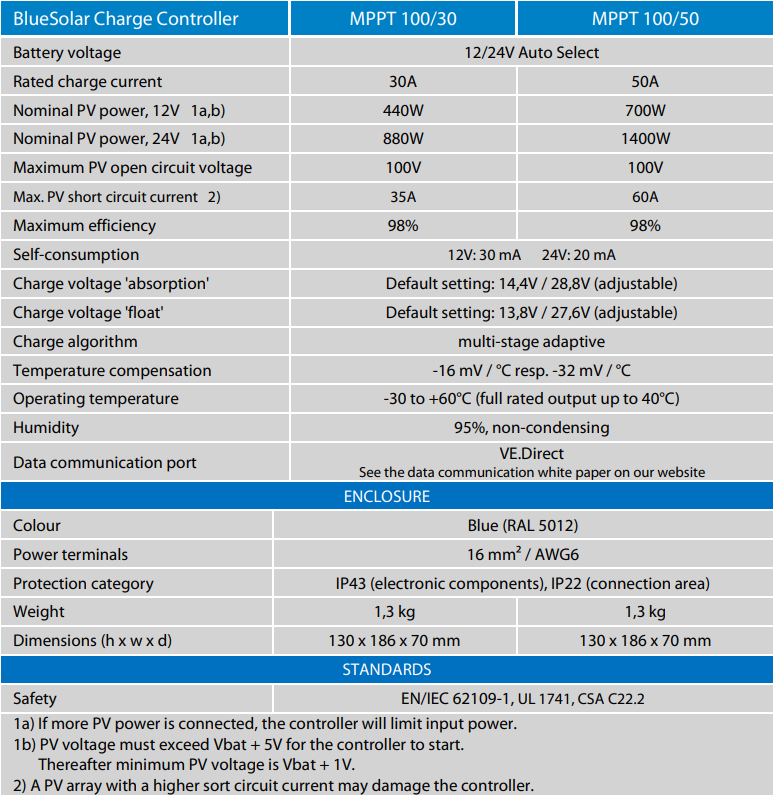

BlueSolar MPPT 100|30 & 100|50 Datasheet

BlueSolar MPPT 150|35 & 150|45 Manual

BlueSolar MPPT 150|60 & 150|70 Manual

BlueSolar MPPT 150|100 up to 250|100 VE.Can Manual

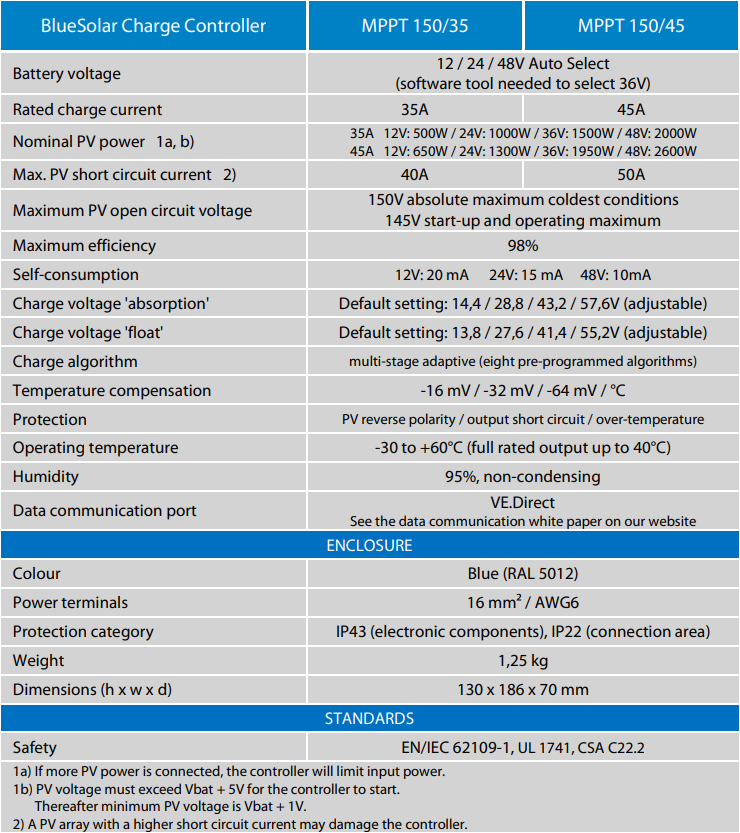

BlueSolar MPPT 150|45, 150|60 & 150|70 Datasheet



Dimension Drawings

BlueSolar/SmartSolar MPPT 100/30 Dimensions

BlueSolar/SmartSolar MPPT 100/50, 150/35, & 150/45 Dimensions

BlueSolar MPPT 150/60 & 150/70-Tr Dimensions

BlueSolar MPPT 150/60 & 150/70-MC4 Dimensions

BlueSolar/SmartSolar MPPT 150/85-250/100-Tr VE.Can Dimensions

Additional information

WeightN/A
DimensionsN/A
Select a Model

BlueSolar MPPT 75/10, BlueSolar MPPT 75/15, BlueSolar MPPT 100/15, BlueSolar MPPT 100/20, BlueSolar MPPT 100/30, BlueSolar MPPT 100/50, BlueSolar MPPT 150/35, BlueSolar MPPT 150/45, BlueSolar MPPT 150/45-MC4, BlueSolar MPPT 150/60, BlueSolar MPPT 150/60-MC4, BlueSolar MPPT 150/70-Tr, BlueSolar MPPT 150/70-MC4, BlueSolar MPPT 150/100-Tr VE.Can, BlueSolar MPPT 250/70-Tr VE.Can, BlueSolar MPPT 250/100-Tr VE.Can
