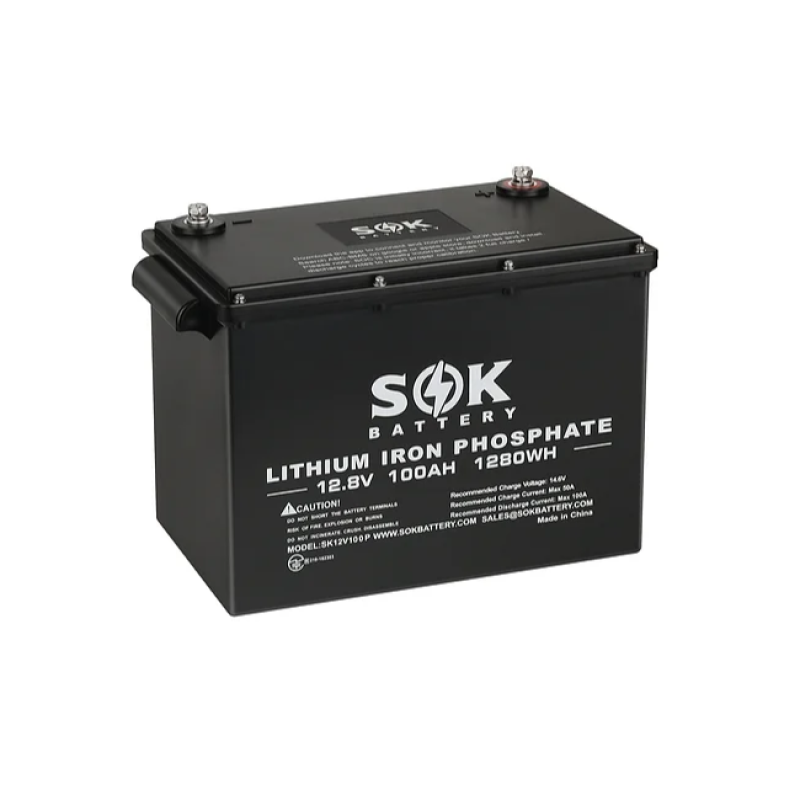

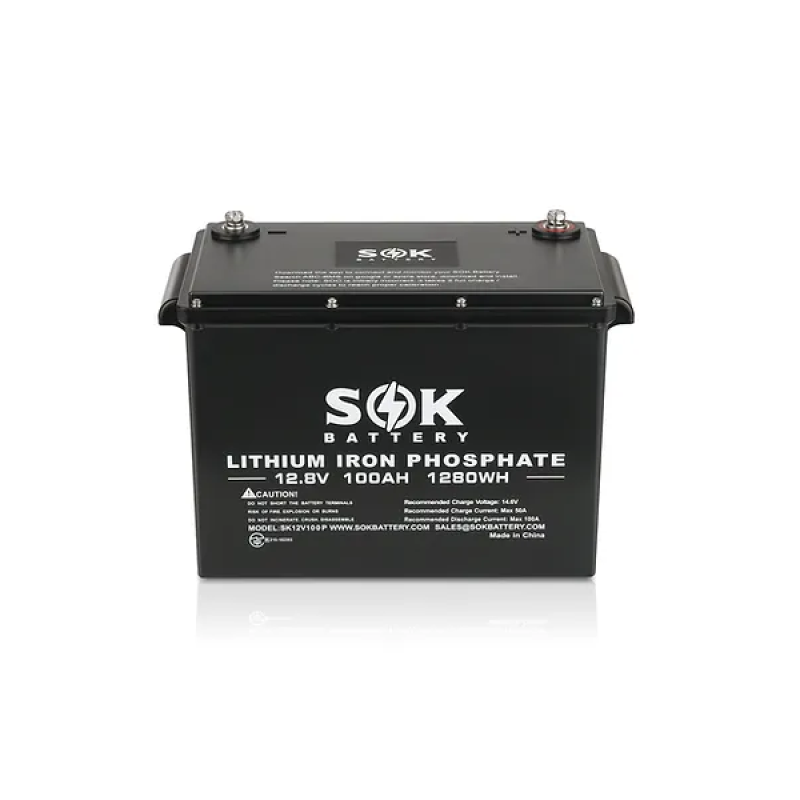

SOK Lithium Iron Phosphate 12V 100Ah Battery, Marine Grade
$316.00
-
- Description
- Downloads
- Additional information
Description
SK12V100P Features:Â
- 7 Years Warranty,4000~8000 Cycles Life Span, Free Maintenance.
- Detachable Cover, Replaceable BMS or Cells.
- Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
- Built-in Smart Battery Management System.
- Low Temperature Charging Cut-off.
- High Temperature Charging or Discharging Cut-off.
- Over Charging or Discharging Protection.
- Over Current & Short Circuit Protection.
- Battery Cells Auto Balance.
- Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC) before they are connected.
SPECIFICATIONS
SK12V100P Charge Information:
- Recommended Charge Current   20 A
- Maximum Charge Current   70 A
- Recommended Charge Voltage   14.6 V
SK12V100P Discharge Information:
- Maximum Continuous Discharge Current   170 A
- Peak Discharge Current   200 A (3 s)
- Recommended Low Voltage Disconnect   10.4V
SK12V100P Size Information:
- Terminal Type: M8, 5/16 lugs
- Weight: 27 lbs.
SK12V100P Temperature Information:
- Discharge Temperature   -4 to 140 ºF
- Charge Temperature   -4 to 113 ºF
- Storage Temperature   23 to 95 ºF
Certifications Information:
UL1973 & IEC62619 for Battery cells
Additional information
| Weight | 27 lbs |
|---|---|
| Dimensions | 12.83 × 6.69 × 8.58 in |
