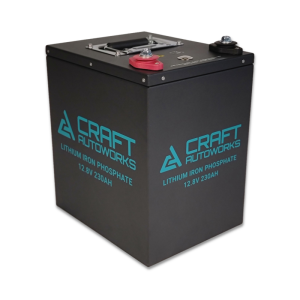

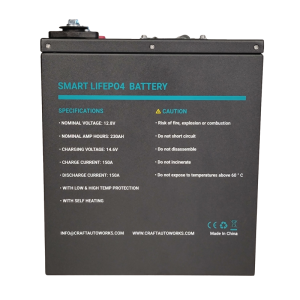

Craft Autoworks 230Ah Battery 12v LiFePO4 Battery



SKU: CA12100-1 Categories: ,


The Craft Autoworks 230Ah 12v LiFePO4 Battery has an ultra compact design, Low State of Charge (SOC) manual wake up system, a detachable lid with serviceable BMS and cells and an 8 year warranty.

What sets the CA12230 battery apart from everything else on the market is its low SOC wake up system. A common issue with LiFePO4 batteries is that when battery gets over-discharged and the Battery Monitoring System (BMS) turns the battery of to protect it, you normally need to use a special charger that has a lithium wake up protocol in its programming to get the BMS to turn the battery back on before it can be charged. The Craft Autoworks line of batteries all feature a proprietary circuit that temporarily shows the batteries cell voltage at the terminals even when the BMS has gone into low SOC by pressing the momentary switch. This means that even if you are using a charger that can’t wake up your battery, you can turn on your charger, momentarily hold the “Wake Up” button on the battery, and the charger will see the battery voltage and begin charging it. This allows for far more reliability in off-grid applications and opens up many possibilities for effectively using more budget friendly battery chargers and inverter/chargers.


CA12100 Features:

  • Case Size 30% smaller than leading competitors
  • Low SOC Wake Up System
  • Built-in smart Battery Management System (BMS)
  • Low temperature charging protection
  • Self heating system to allow charging below 0*C
  • High temperature charging or discharging cut-off
  • Over charging and discharging protection
  • Over current and short circuit protection
  • Battery cells auto balance


CA12230 Charge information:

  • Recommend charge voltage: 14.6V
  • Recommend charge current: 100A
  • Maximum charge current: 150A
  • Maximum batteries in parallel: 10 batteries
  • Recommended to only be used in 12v applications due to the self-heating system


CA12230 Discharge Information:

  • Recommend low voltage disconnect: 11.2V
  • Maximum continuous discharge current: 150A
  • Peak discharge current: 200A (3 seconds)
  • BMS discharge cut-off voltage: ~10.4V
  • Reconnect Voltage: >11.5V


Size Information:

  • Terminal Type: M8 bolts
  • Weight: 50.2 lbs.
  • Dimensions: 200 x 250 x 291 mm, 7.9 x 9.8 x 11.5 inches LxWxH


Temperature Information:

  • Discharge temperature: -4°F to 140°F
  • Charge temperature: 0°F to 113°F
  • Recommend storage temperature: 32°F to 95°F


Shipping Classification: UN 3480, CLASS 9

Additional information

Weight27 lbs
