COTEK 150 Watt 12V Pure Sine Inverter S150-112

-10%

COTEK 150 Watt 12V Pure Sine Inverter S150-112

$165.00 $149.00

  • Description
  • Downloads
  • Additional information

Description

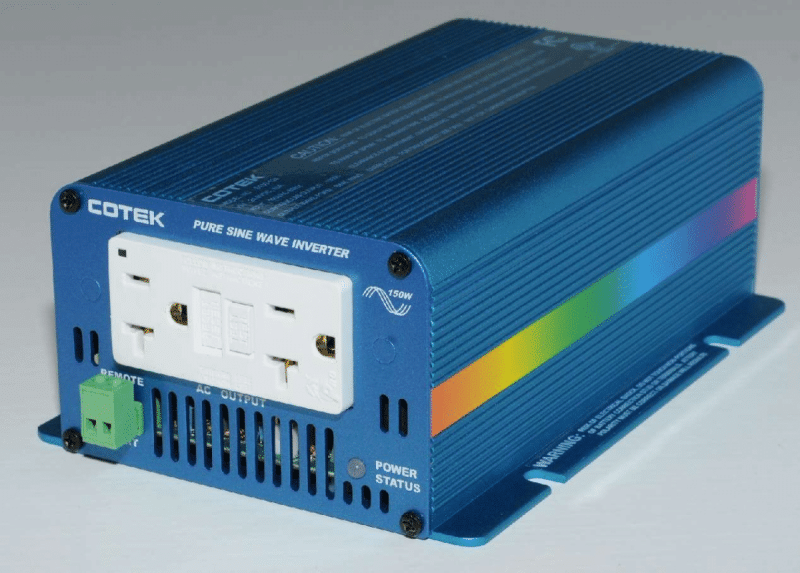

This high efficiency UL 458 approved microprocessor controlled DC-AC inverter converts 12 Volts DC to 150 watts of pure sine-wave AC power at 110 Volts, 60 Hz. The unit comes with a set of cables terminated in Anderson connectors and dual NEMA 5-20R GFCI receptacles (other types of input connectors and output AC sockets may be requested). Features include overload, short circuit, over-temperature, low battery, polarity reverse, under & over voltage protections.



Part Number: COTEK S150-112



Features:

  • True sine wave output (THD 6% Typ.)
  • Power ON-OFF remote control
  • Input & output fully isolation
  • Thermo control cooling fan
  • Advanced microprocessor
  • Input polarity reverse / under voltage / over voltage protections
  • Output short circuit / overload / over temperature protections
  • Capable of driving highly reactive and capacitive loads
  • Tri-color indicators display input, output level & failure status
  • UL / e-13 / CE / FCC approved



Specifications:

  • AC Voltage: 100 / 110 / 120VAC
  • Continuous Power: 150W
  • Surge Power: 200W
  • Waveform: True sine wave
  • Frequency: 50 / 60 Hz
  • AC Regulation: +/- 5%
  • Standard Receptacles: NEMA5-15R / GFCI
  • LED Indicator: Input voltage level, output load level and fault status
  • No Load Current Draw: 0.20A
  • DC Voltage: 12VDC
  • Voltage Range: 10.5~15.0VDC
  • Efficiency: 87%
  • Fuse: 25A x 1
  • Cooling: Thermostatically controlled cooling fan
  • Remote Control: By external switch
  • Battery Low Shutdown: 10V +/- .5V
  • Over Load: Shut off output voltage, re-power on to recover
  • Over Voltage: 15 ~ 16VDC
  • Over Temp: Shut off output voltage, auto resets
  • Output Short: Shut off output voltage, re-power on to recover
  • Battery Polarity Reverse: By Fuse Open
  • Safety Standards: UL458 (only for “GFCI” receptacles)
  • Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
  • EMI Conduction & Radiation: Compliance to FCC class B
  • Dimensions(L x W x H): 7.9 x 5.2 x 2.8 in
  • Weight: 5.4 lbs



Additional information

Weight 5.4 lbs
Warranty

2 Year
