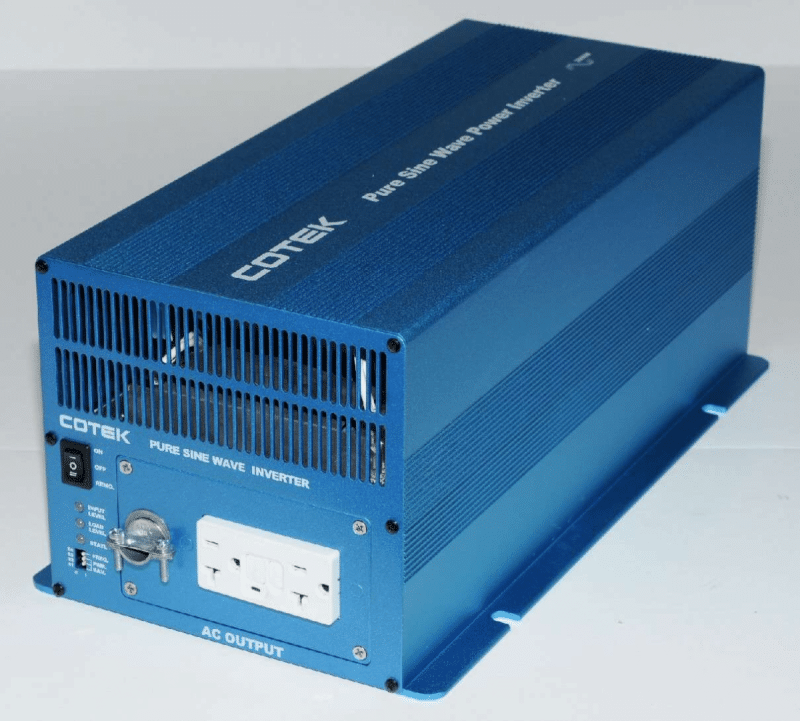

COTEK 3000 Watt 24V Pure Sine Inverter SK3000-124

Description

This high efficiency microprocessor controlled DC-AC inverter converts 24 Volts DC (Nominal) to 3000 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with input battery cable lugs and dual NEMA 5-20R GFCI receptacles. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the safety standards of the unit conform to UL-458 specifications.

Part Number: COTEK SK3000-124

Features:

• True sine wave output (THD <3%)
• Power ON-OFF remote control
• Input & output fully isolation
• Load control cooling fan
• Advanced microprocessor
• Output frequency 50/60 Hz switch selectable
• Low power saving mode to conserve energy
• Input polarity reverse / under voltage / over voltage protections
• Output short circuit / overload / over temperature protections
• Tri-color indicators display input, output level & failure status
• e-13 / CE / FCC approved
• 2 Year Warranty

Specifications:

• AC Voltage: 100 / 110 / 120VAC
• Continuous Power: 3000W
• Surge Power: 6000W
• Waveform: True sine wave (THD < 3%)
• Frequency: 50 / 60 Hz selectable by DIP switch
• AC Regulation: +/- 3%
• Standard Receptacles: 2 x North American GFCI (not shown)
• LED Indicator: Input voltage level, output load level and fault status
• No Load Current Draw: 1.60A
• Stand By Current Draw: 0.35A
• DC Voltage: 24VDC
• Voltage Range: 21~30VDC
• Efficiency: 91%
• Fuse: 20A x 10
• Cooling: Loading controlled cooling fan
• Remote Control: CR6 / CR8 optional
• Battery Low Shutdown: 21VDC
• Over Load: Shut off output voltage, re-power on to recover
• Over Voltage: 30.6VDC
• Over Temp: Shut off output voltage, auto resets
• Output Short: Shut off output voltage, re-power on to recover
• Battery Polarity Reverse: By Fuse Open
• Safety Standards: Meet UL458
• Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
• EMI Conduction & Radiation: Compliance to FCC class A
• Dimensions(L x W x H): 17.8 x 8.2 x 6.5 in
• Weight: 22 lbs
