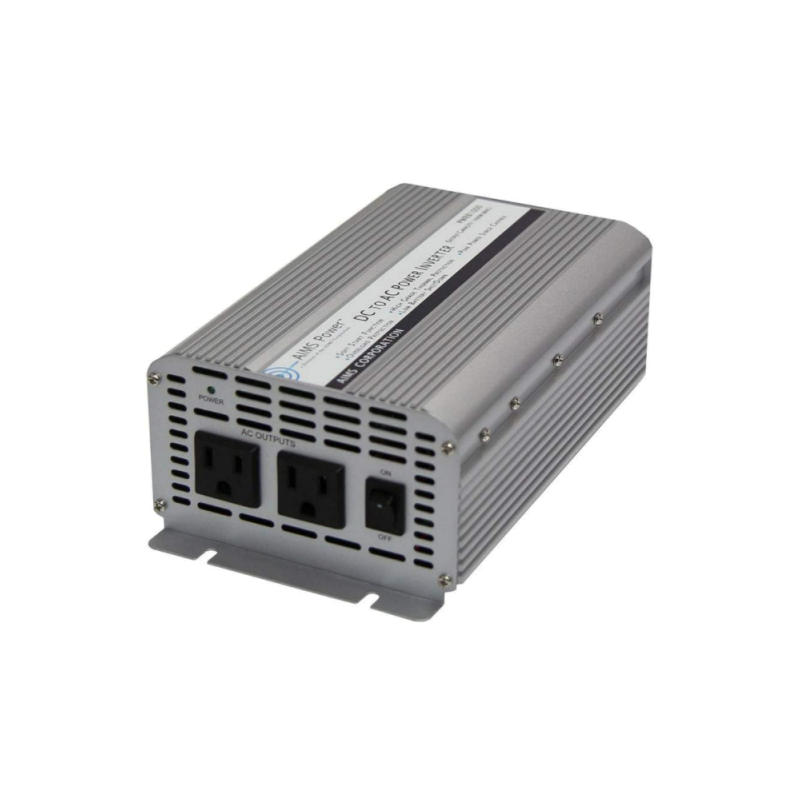

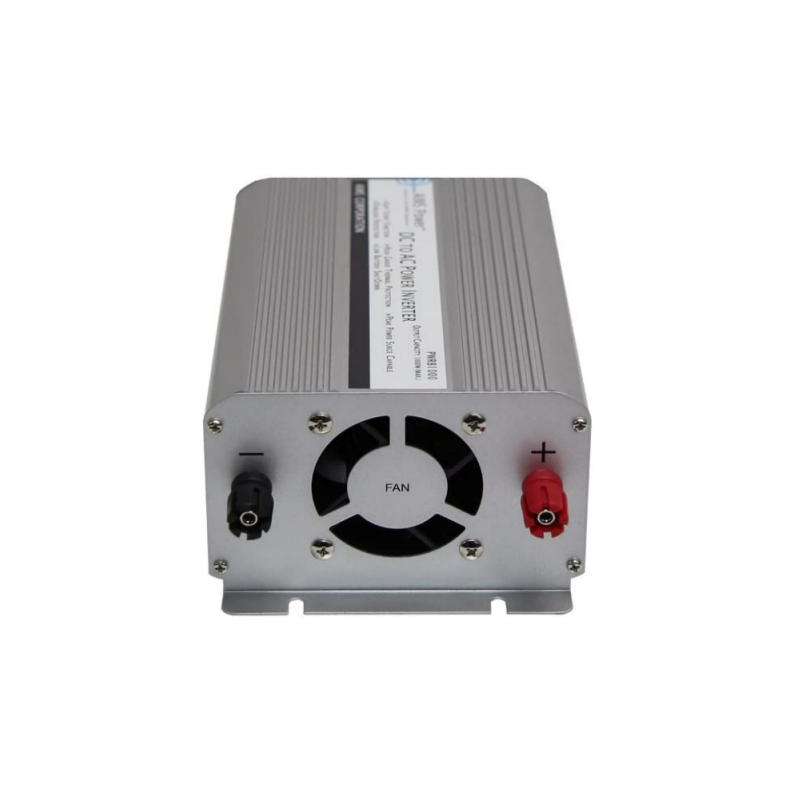

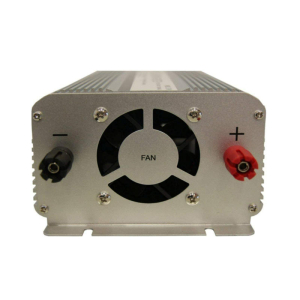

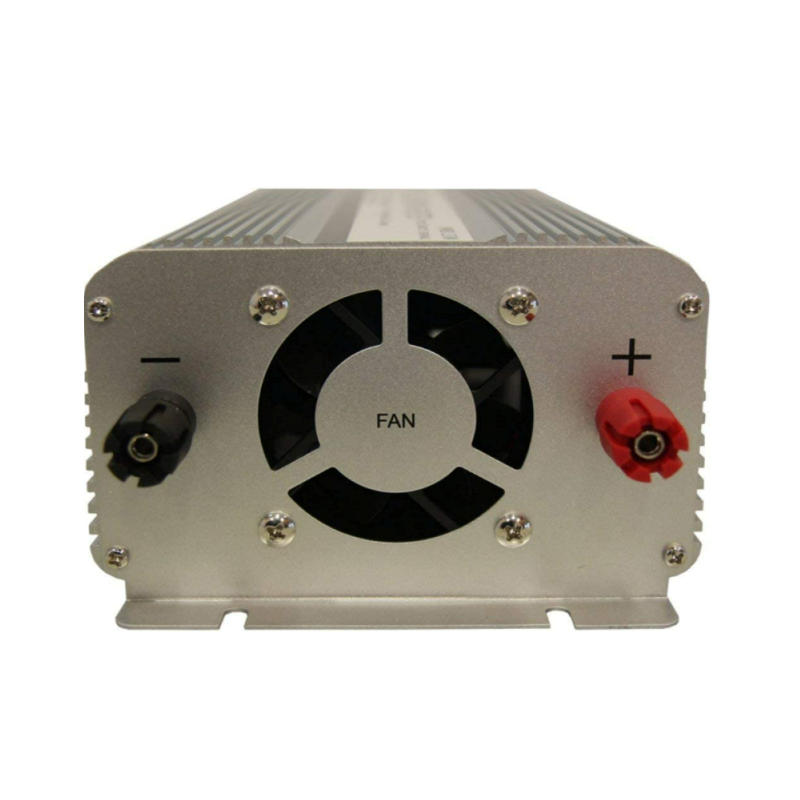

Aims 1000 Watt “No Frills” Inverter PWRB1000

-10%

Aims 1000 Watt “No Frills” Inverter PWRB1000

$82.00 $74.00

Description



Aims Part Number: PWRB1000



Many of you have asked us for a powerful inverter that does not have all the “bells and whistles”, and Aims listened!

This Aims PWRB1000 1000 watt “No Frills” inverter has all the same great power and specs as the immensely popular Aims 1000 watt inverter, except:

  • No volt meter
  • No amp meter
  • No thermal fan (fan continuously runs)
  • No remote switch jack



Features:

  • 1000 Watts max continuous power
  • 8.3 Amps continuous power
  • Modified sine wave
  • 2 AC receptacles
  • On/Off Switch
  • Over Temperature protection
  • Over Load protection
  • Dual cooling fan
  • Internal fuse protection
  • AC output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 year warranty parts and labor



Specifications:

  • Continuous output power: 1000 Watts
  • Surge power capability (peak power): 3000 Watts
  • DC input / operating voltage: 10 to 15 Volts
  • Output voltage: 120 Volts AC +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 10.5 +/-0.5 Volts
  • Battery low voltage shutdown: 10.0+/-0.5 Volts
  • No load current: < 0.6 Amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: 5 degrees Fahrenheit
  • Full load maximum operating temperature: 131 +/-5 degrees Fahrenheit (automatic shutdown)
  • AC Output Socket Type: dual Type 2-3 prong
  • High input voltage protection: 15V
  • Low input voltage shutdown: 10V
  • Internal fuse protection
  • Dimensions (LXWxH): 11″ x 5.25″ x 3.25″
  • Weight: Unit – 3.2 lbs
  • Weight: Boxed – 4.0 lbs

Additional information

Weight 3.2 lbs
Warranty

1 Year
