AIMS Power LiFePO4 Lithium Battery with Wake Up, Heater & BT Monitoring 12V 104Ah
$530.00
-
- Description
- Features
- Additional information
Description
The AIMS Power 104A lithium battery offers a unique built-in HEATER & WAKE-UP feature. These features allow a wider temperature range for charging and will spark the battery enough allowing a charge even if the battery has previously been over discharged. No need to jumper to another battery to “wake up” a over discharged battery.
AIMS Power just launched its new and improved 104 amp 12V lithium iron phosphate (LiFePO4) battery and is receiving a lot of positive feedback. The LiFePO4 battery maintains constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery, and it can simplify or even eliminate the need for voltage regulation circuitry. The battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. The internal heater helps keep the temperature elevated, so charging is more efficient in colder climates.
Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, golf carts, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries. Backed by a 10 year pro-rated warranty and battery cell IEC rating that specifies requirements and tests for the safe operation of secondary lithium cells and batteries used in industrial applications including stationary applications.
- Automatic wake-up button in case battery is over discharged and/or has low voltage (no need to parallel another battery or have special charger to wake)
- Automatic heater for charging in colder environments (no external wiring needed)

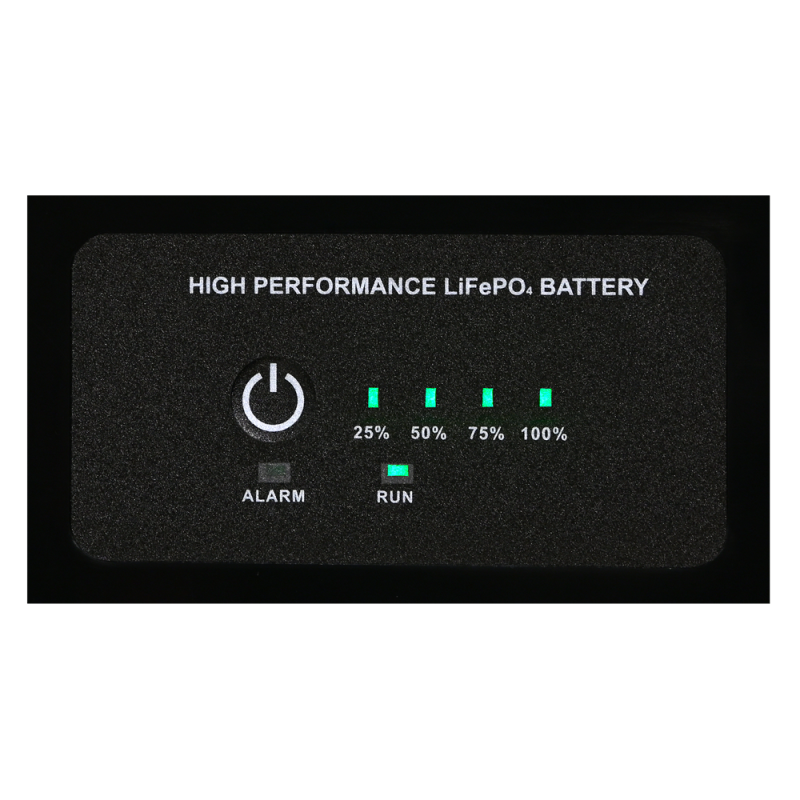

- Display
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance
- Bluetooth monitoring
- 10 year warranty
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
- IP65 rated
| Electrical Specifications | LFP12V104B | ||
| Nominal Voltage | 12.8V | ||
| Nominal Capacity (at .5C, 77°F) | 104Ah | ||
| Minimum Capacity (at .5C, 77°F) | 95Ah | ||
| Expected Cycle Life | >4800 cycles w/1C charge and discharge rate, at 77°F, 80% DOD | ||
| Operating Specifications | |||
| Charge Method | Smart charger, constant current, constant voltage | ||
| Charge Voltage Range (Max 14.6V) | 14.2 -14.6V | ||
| Continuous Charge Current | 100A Max | ||
| Continuous Discharge Current | 100A Max | ||
| Peak Instant Discharge Current (10 secs) | 200A | ||
| Over Voltage Shutdown | 15.6 +/-.2V | ||
| Discharge Cut-off Voltage | 8V =/- .5V | ||
| Charge/Discharge Temperature | Minus 4° F to 131°F (with built in heater) | ||
| Storage Temperature | -4° F to 113° F | ||
| Self Disharge (stored at 50% SOC) | < 3%/month | ||
| Watt hours | 1280 watt hours | ||
| Physical Specifications | |||

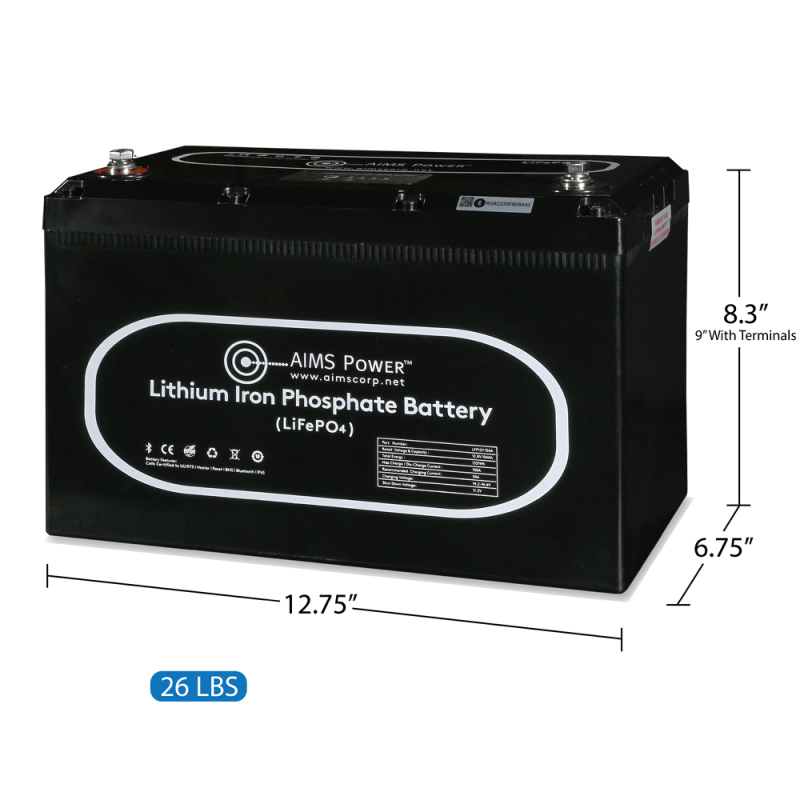

| Battery Dimensions | 12.75″L x 6.75″W x 8.3″H | 9″H w/terminals | ||
| Weight | 26 lb | ||
| Shipping Weight | 27 lb | ||
| Group Size | 31 | ||
| Battery post size | 5/16″ 8M | ||
| BMS Operation | |||
| Over Charge Protection | Over charge alarm voltage: 3.55 +/- .05V cell 14V battery pack | ||
| Over charge detection delay time: 1000 ms | |||
| Over charge protection: 3.70 +/-.05V cell 14.8V battery pack | |||
| Over charge release voltage: 3.45 +/-.05V cell 13.8V battery pack | |||
| Over Discharge Protection | Over discharge alarm: 2.8V +/- .05V cell 11.2V battery | ||
| Over discharge detection delay time: 1000 ms | |||
| Over discharge protection: 2.5V +/- .10V cell 10V battery pack | |||
| Over discharge release: 2.8V cell 11.2V battery pack | |||
| Over Current Protection | Charge over current alarm: 60A | ||
| Charge over current protection: 110A | |||
| Charge over current detection delay time: 15S | |||
| Charge over current release condition: Automatic release after 1 min and up to 3 times or charge | |||
| Discharge over current protection: 115A | |||
| Discharge over current detection delay time: 15S | |||
| Discharge over current release condition: Automatic release after 1 min and up to 3 times or charge | |||
| Charge Low Temp Alarm | 7°C | 44°F | ||
| Charge Low Temp Protection | 0°C | 32°F | ||
| Charge Low Temp Protection Release | 5°C | 41°F | ||
| Charge High Temp Alarm | 50°C | 122°F | ||
| Charge High Temp Protection | 55°C | 131°F | ||
| Charge High Temp Release | 45°C | 113°F | ||
| Discharge Low Temp Alarm | Minus 10°C | 14°F | ||
| Discharge Low Temp Protection | Minus 20°C | Minus 4°F | ||
| Discharge Low Temp Protection Release | Minus 17°C | 1°F | ||
| Discharge High Temp Alarm | 55°C | 131°F | ||
| Discharge High Temp Protection | 60°C | 140°F | ||
| Discharge High Temp Protection Release | 50°C | 122°F | ||
| Polarity Reverse Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| UPC | 840271008202 | ||
| Warranty | 10 Yr Manufacturer Defect Prorated – IP65 rated | ||
| Certification | Cells certified to UL1973 | UL9540A: IEC62619 | UN38.3| ROHS | ||
Additional information
| Weight | 27 lbs |
|---|---|
| Dimensions | 12.75 × 6.75 × 9 in |
