Wagan Pure Line 1000 Watt 12V Pure Sine Wave Inverter

Description

A set of 3 foot, 6 AWG battery cables are included with the Wagan 3804 1000 Watt power inverter. Wagan states that the brand new Wagan 3804 Pure Line 1000 Watt 12V Pure Sine Wave Inverter was built ”from the ground up”. Born from an idea to make compact and efficient Pure Sine Wave Inverters that not only look good, but perform great; the new Wagan 3804 1000 Watt Pure Line power inverter will change the way that you look at PSW power inverters! All models are ETL Listed and conform to UL 458 Standards! On the front of the Pure Line 3804 1000W you’ll find: two 3-prong GFCI AC outlets (NEMA 5-15), 3 position power switch (On > Off > Remote), 2.1A USB Power Port, High Output Terminal Block, Power & Fault Lights, Solid Mounting Feet, and a remote switch input port. On the rear of the Pure Line 3804 1000W, you’ll find: the Negative (Black) Solid Mount Terminal, Positive (Red) Solid Mount Terminal, Twin Cooling Fans, Solid Mounting Feet, and a Grounding Terminal.

Features & Specifications:

• TrueRated Power™: 1000W
• Surge power: 2000W
• AC output: 110-120V
• Frequency: 60Hz
• Socket type (NEMA5-15): U.S. standard 3-prong (2x)
• GFCI: Yes, Internal
• USB Power Port: 5V, 2.1A
• Maximum efficiency: 90%
• Output waveform: Pure Sine Wave (PSW)
• Overload protection: Automatic shutdown
• Overvoltage shutdown: 16.5V±0.5V DC
• Overheating protection: Cooling fan with automatic shutdown
• Cooling Fan: Load/Temperature Controlled
• DC Input range: 11V to 15V
• DC Cable: 3 feet, 6AWG (Included)
• Short circuit and reverse polarity protection: Internal fuses
• Low battery alarm: 10.5V ± 0.5V
• Low battery automatic shutdown: 10V ± 0.5V
• No load current draw: 1.0A
• Harmonic Distortion (THD): 3%
• NTG Bond: Yes
• True Ground: Yes
• Remote Control Capable*
• Conforms to UL 458 Standards
• ETL Certified
• Conformal Coating PCB
• DC Terminal Safety Covered (removable covers)
• Net weight: 6.0 lbs.

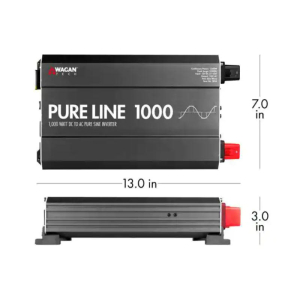

• Dimensions L x W x H (in.): 13.0 x 7.0 x 3.0
• Warranty: 2 Years
