Victron Battle Born Van 200Ah GC2 Kit
- Additional information
With 200Ah of 12V GC2 Battle Born Batteries and awesome Victron components, this kit is perfect for your van or overland conversion. Part of our new line of Victron and GC2 Battle Born Batteries, the Van 200Ah kit is a great starter kit for your weekend trips.
With the ability to charge from shore, solar, and directly from your van’s alternator, you’ll always have power when you need it! The Victron solar charge controller is rated for up to 700w making it a great companion to this solar-ready bundle. Inverters R US will also pre-program this system for you before it ships!
2 – Battle Born 100AH 12V GC2 Deep Cycle Batteries:
Dimensions: 10.31 x 7.28 x 11.02 in. (L x W x H)
Weight: 31 lbs.
Charging voltage: 14.2 – 14.6 V
Float voltage: 13.6 V or lower

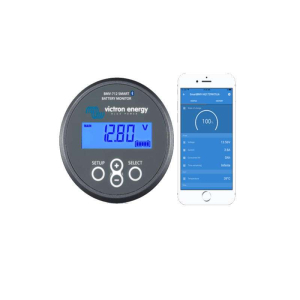

1 – Victron BMV-712 Battery Monitor:
Dimensions of Front: 63 mm. diameter
Dimensions of Body: 52 mm. diameter, 31 mm. depth

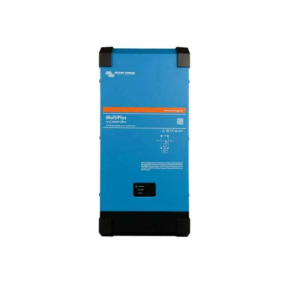

1 – Victron Multiplus Inverter Charger 2000W 12V:
Dimensions: 20.5 x 10.0 x 5.0 in. (H x W x D)
Weight: 25 lbs.

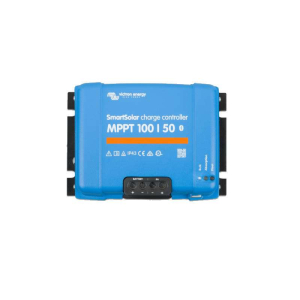

1 – Victron SmartSolar MPPT 100/50 Solar Charge Controller:
Dimensions: 130 x 186 x 70 mm. (H x W x D)
Weight: 1.3 kg.

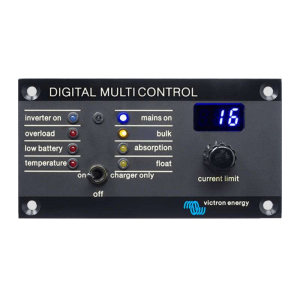

1 – Victron Digital Multi-Control:
Dimensions: 2.6 x 4.7 x 1.6 in. (H x W x D)

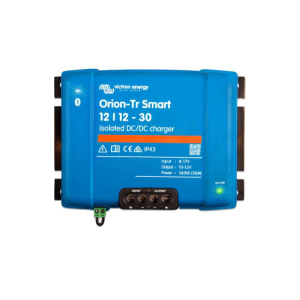

1 – Victron Orion-TR Smart 12/12V-30A Isolated Charger:
Dimensions: 7.3 x 5.1 x 3.2 in. (H x W x D)
Weight: 1.3 kg.
1 – RJ45 1.8m cable
1 – Spartan Power 1 foot 2/0 Battery Cable Set – Red & Black (Made in the USA)
BBGC2 Spec Sheet
Basic Wiring Schematic
BBGC2 Assembly Drawing
Multiplus 2000W 12V Inverter/Charger Manual
SmartSolar Charge Controller MPPT 100/50 Manual
Orion-Tr Smart Charger Isolated
Digital Multi Control Manual
