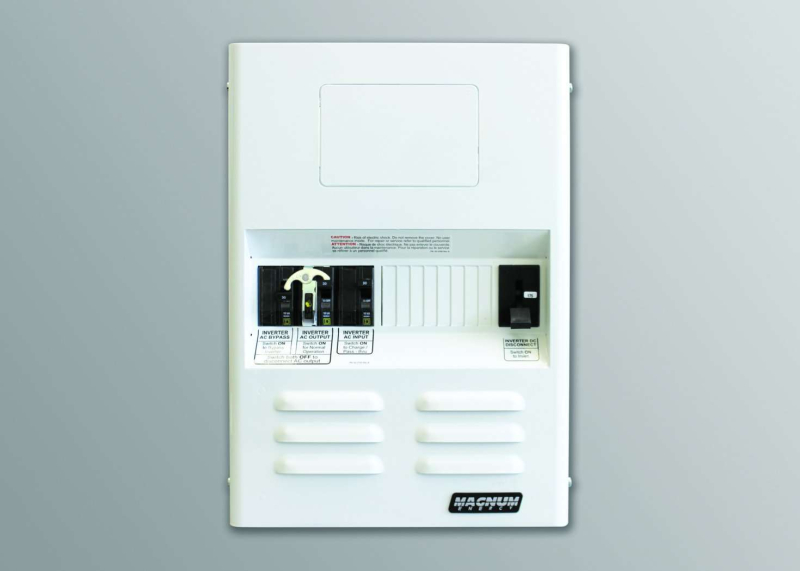

Mini Magnum Panel w/250A DC breaker and 30A dual pole AC input breaker MMP250-30D

Description

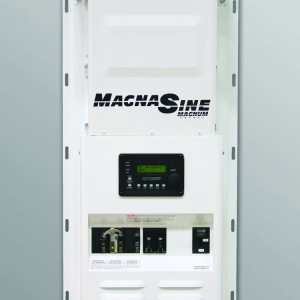

*Pic 3 note: The MMP shown with inverter (sold separately) and optional remote and backplate.

The MMP – Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS-PAE, MS, RD or other non-Magnum inverter / charger.

Magnum Part Number: MMP250-30D

Works With:

• MS Series
• MSH-RE Series
• MS-PAE Series
• RD Series

Features:

• Small footprint: only 12.5″ wide x 18″ tall x 8″ deep
• Money-saving design: not only is the MMP less expensive, but it is pre-wired for fast installation, saving labor costs
• Easy access: front-mounted breakers and remote (optional)
• Choices: can be wired for 120 VAC or 120/240 VAC output
• Inclusive: works with non-Magnum inverter / chargers (may require the optional knockout plate for the top of the MMP: an MMP-KP)
• Listed: ETL listed to UL1741 and CSA C22.2 107-01
• DC load breakers: fits either din rail or back-mount DC load breakers.

Includes:

• One DC breaker – 250A
• One AC bypass breaker – 30A dual pole
• One AC input breaker – 30A dual pole
• 500A/50mv DC shunt
• DC buss bars for battery positive and negative
• Din rail or back mount for optional DC mini breakers – will hold up to eight breakers
• Inverter hood
