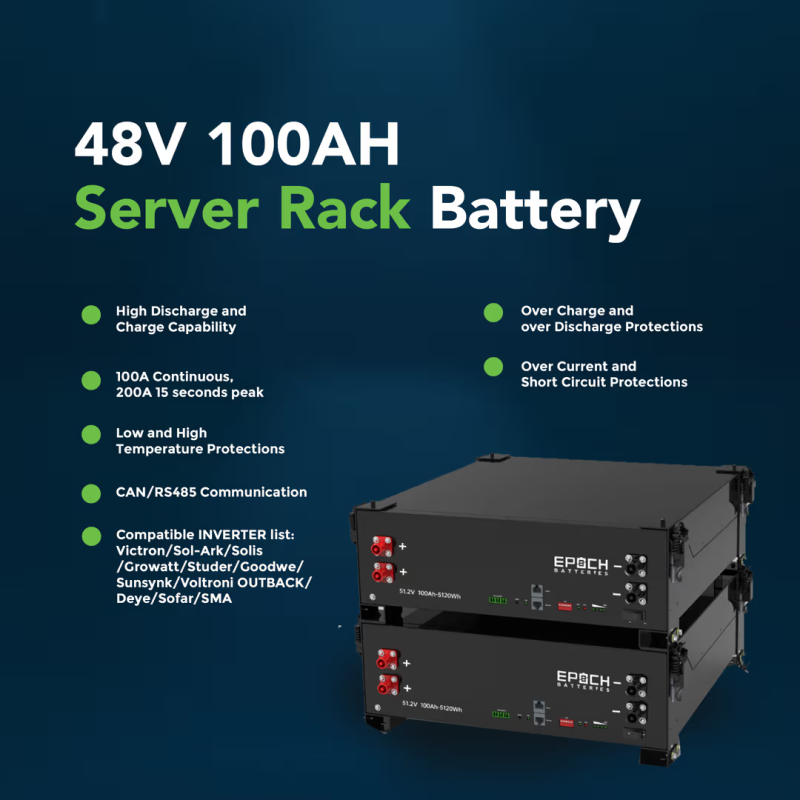

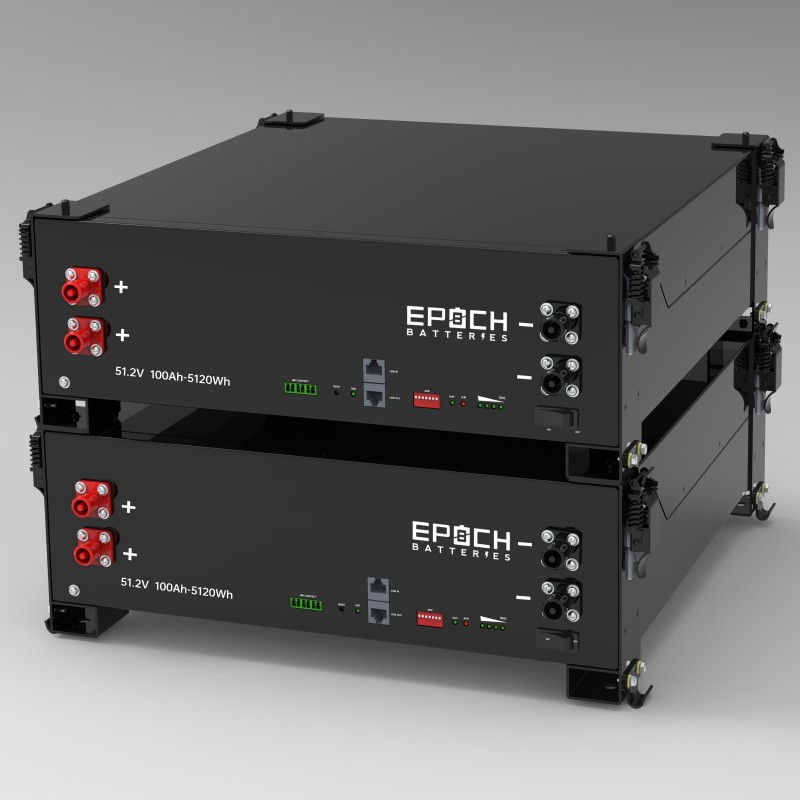

EPOCH 48V 100Ah 5.12kWh – Self-Heating Server Rack Lithium Battery Victron Comms

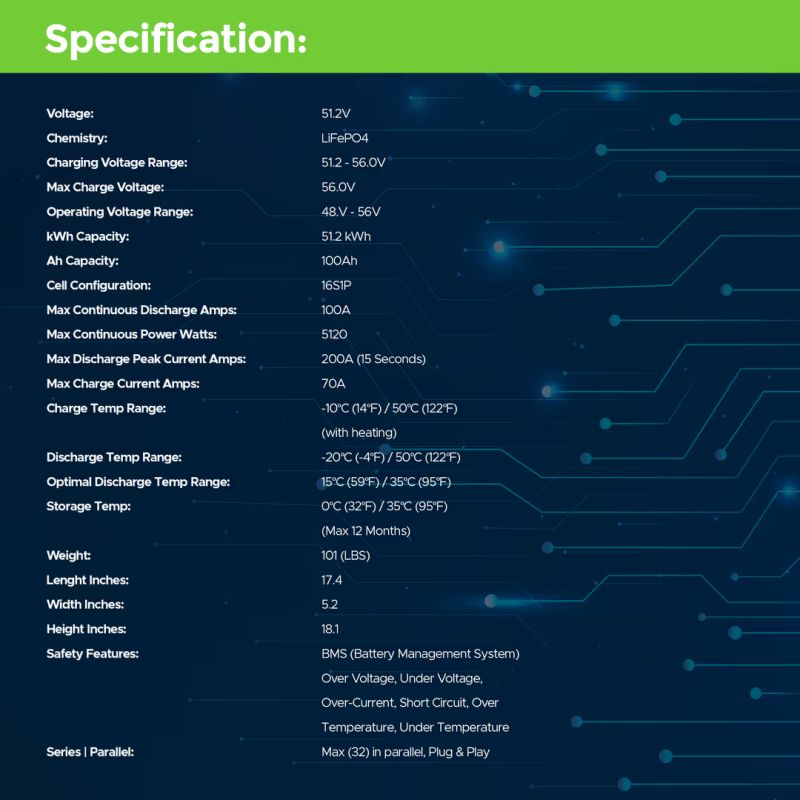

Configuration

Cell Configuration: 16S1P
Chemistry: LiFePO4

Current

Ah Capacity: 100Ah

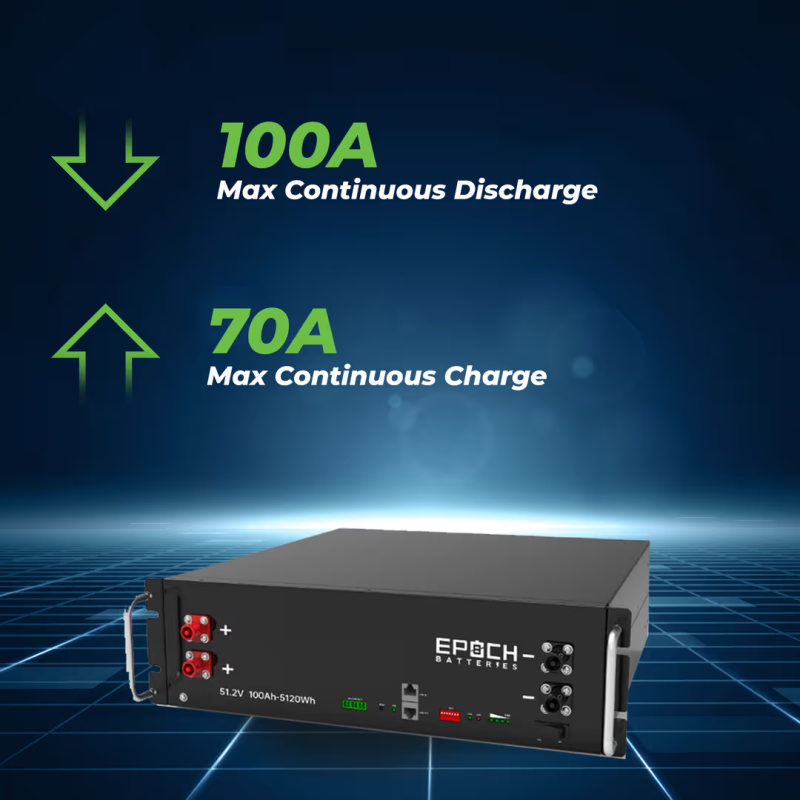

Max Continuous Discharge Amps: 100A
Max Charge Current Amps: 70A
Max Discharge Peak Current Amps: 200A @ 15sec

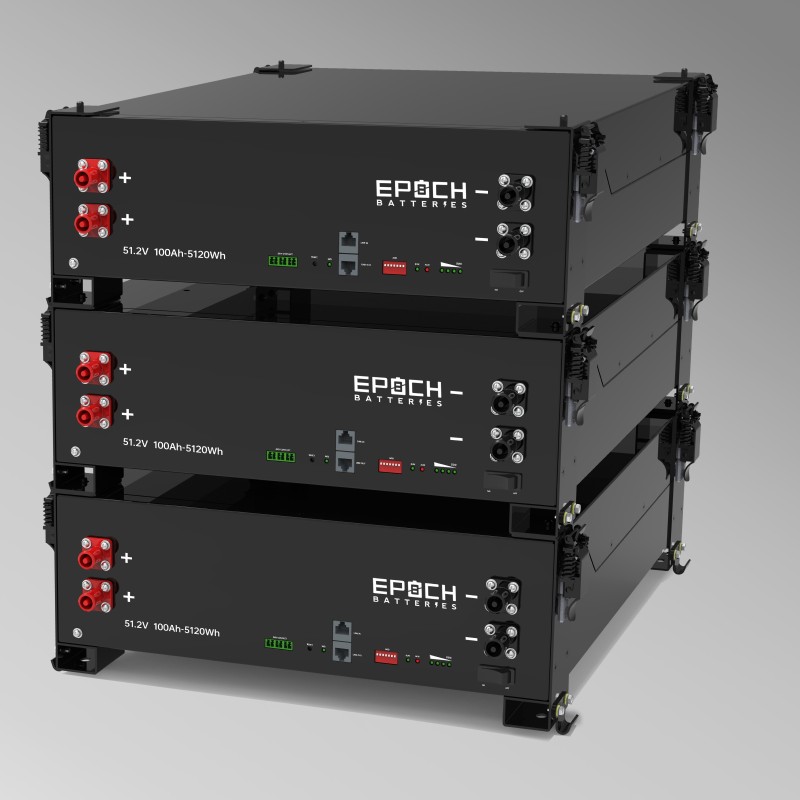

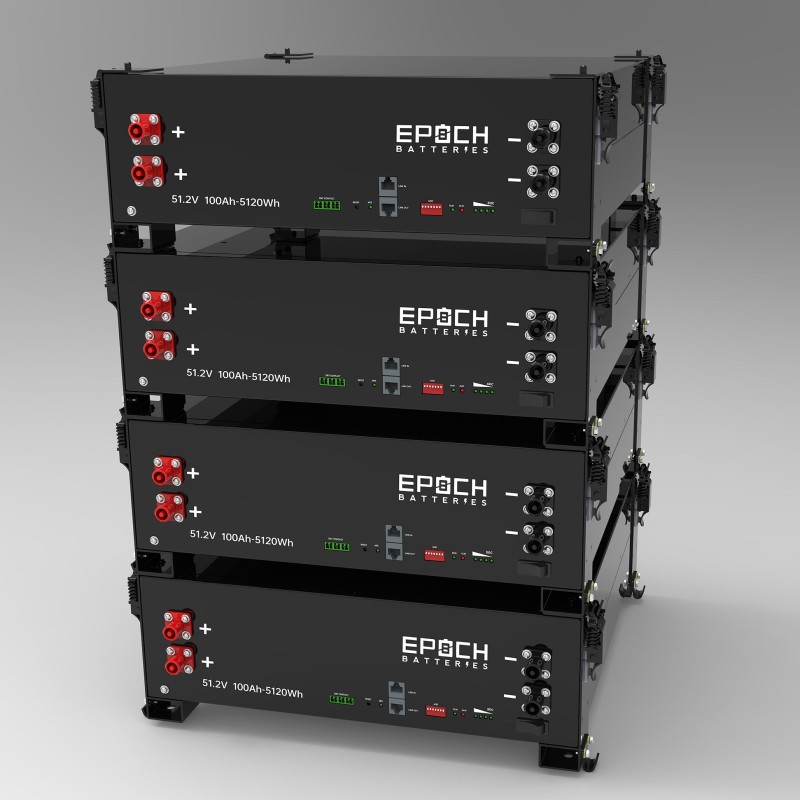

Series | Parallel: Max (32) in Parallel, Plug & Play

Voltage

Voltage: 51.2V
Max Charge Voltage: 56.0V
Operating Voltage Range: 48.0V – 56.0V

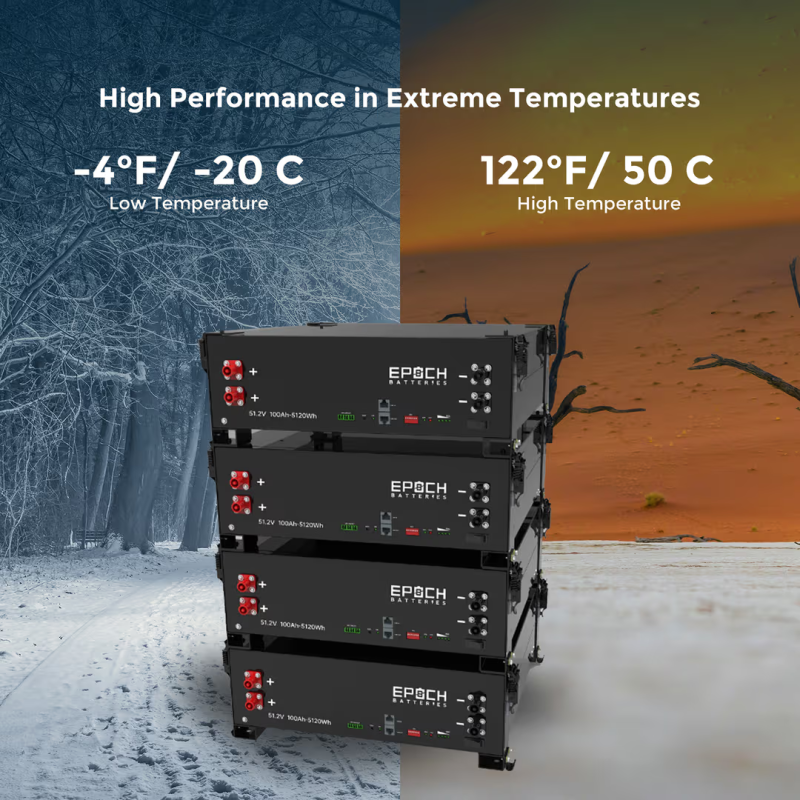

Temperature

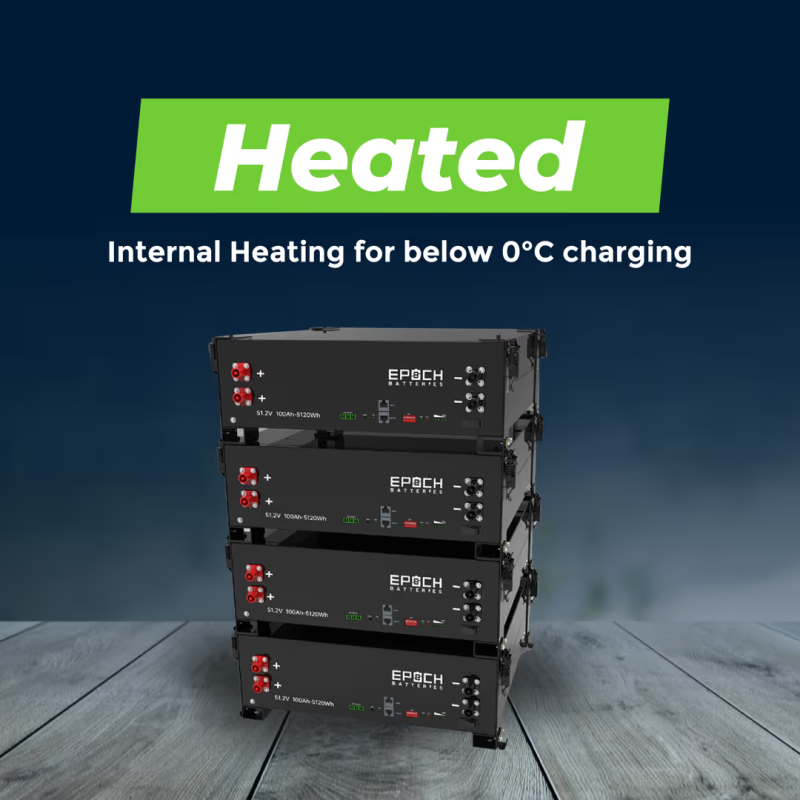

Charge Temp Range: -10°C (14°F) / 50°C (122°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight: 101 lbs

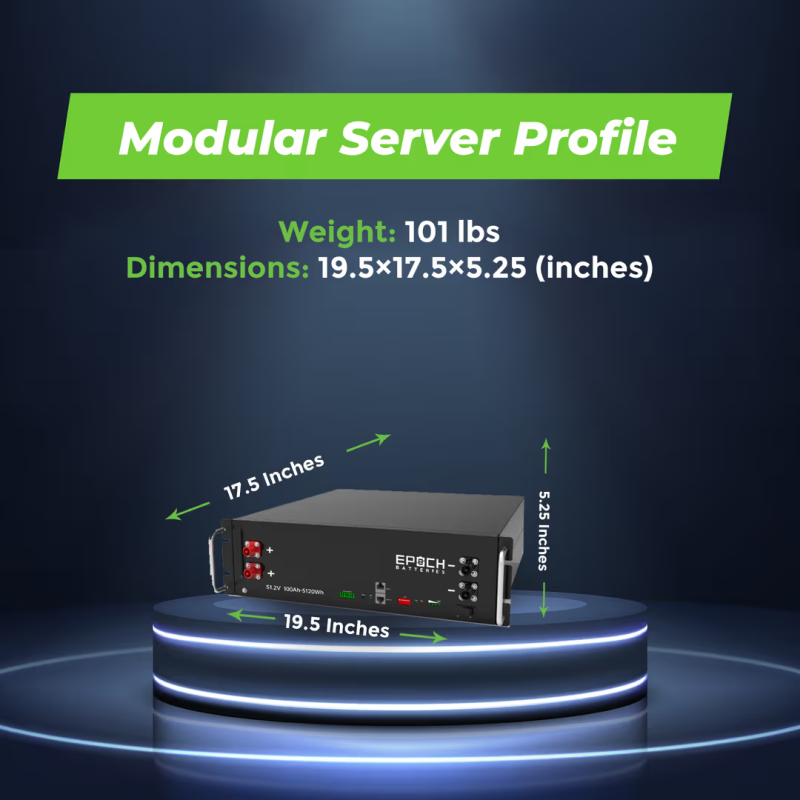

DIMENSIONS

Length: 17.4 (inches)
Width: 18.1 (inches)
Height: 5.2 (inches)

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger’s manual or the manufacturer.

IP20

Our IP20 rating ensures that your battery is protected against solid objects larger than 12mm, making it suitable for indoor use. While it offers basic protection, we recommend keeping it away from moisture and extreme conditions.

• Dust Protected
• Indoor Use Recommended
• Basic Protection
