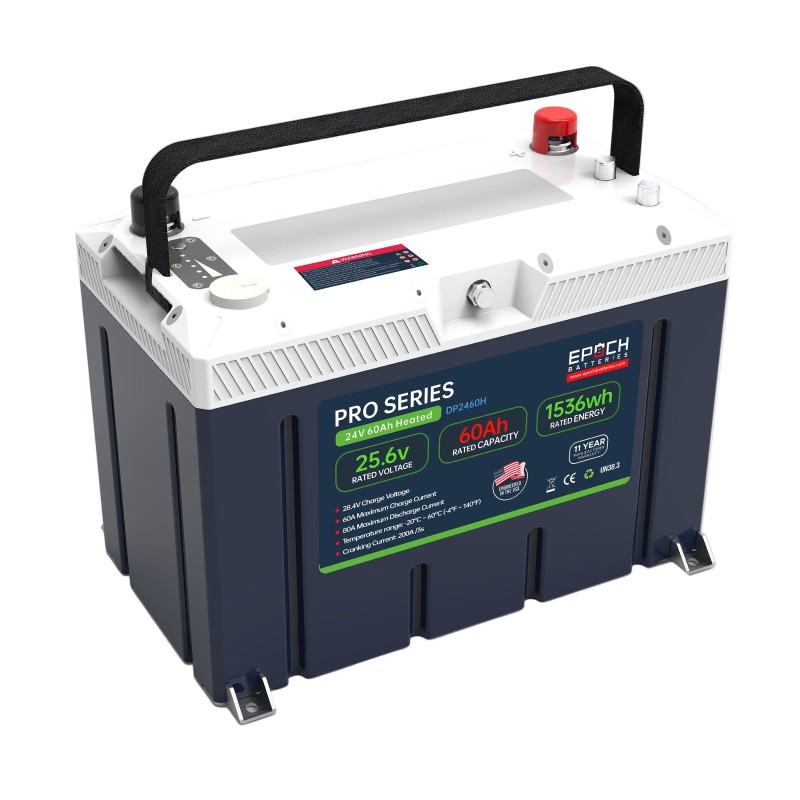

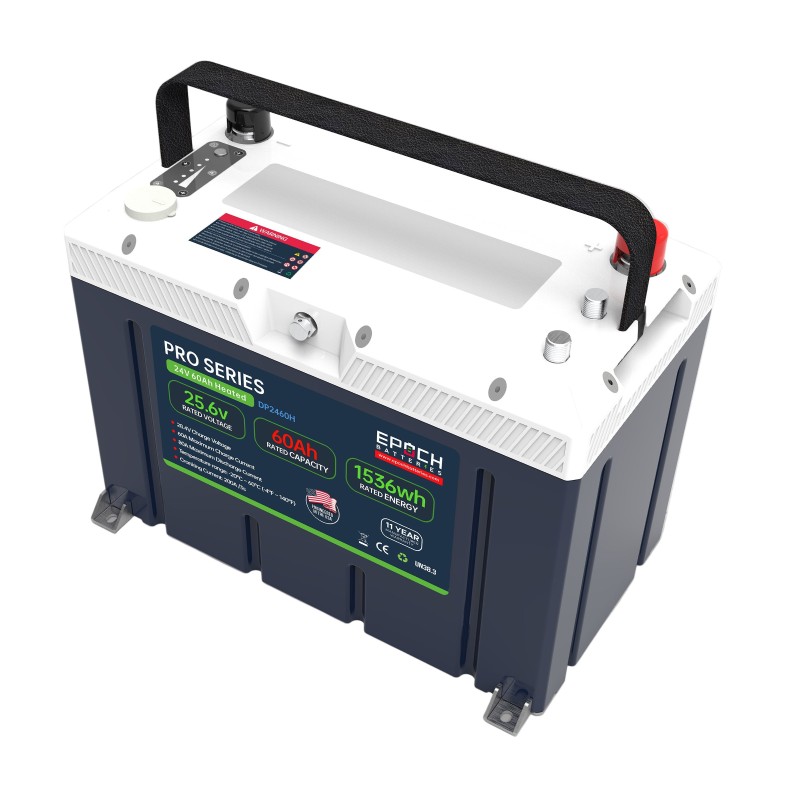

EPOCH 24V 60Ah Pro Series – Heated, Bluetooth & Victron Comms LiFePO4 Battery

Configuration

Chemistry: LiFePO4

Current

Ah Capacity: 60Ah
Max Continuous Discharge Amps: 80A
Max Charge Current Amps: 60A
Max Discharge Peak Current Amps: 200A 3 seconds
Series | Parallel: Max (16) in Parallel

Voltage

Voltage: 25.6V
Max Charge Voltage: 29.2V
Operating Voltage Range: 20 – 29.2V

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 30 lbs

DIMENSIONS

Length: 12.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger’s manual or the manufacturer.

Experience worry-free adventures with our robust IP67 protection. Your battery is completely sealed against dust and can be safely immersed in water up to 1 meter deep for 30 minutes. Whether you’re caught in heavy rain or crossing streams, this military-grade protection ensures your power stays reliable.

• Fully Dustproof
• Waterproof up to 1m
• All-Weather Protection
• Submersible Design
