Discover AES 950-0053 Rackmount ESS 30kWh Slimline Enclosure
$2,100.00
-
Expected Mid August
Unable to ship to Alaska or Hawaii
- Description
- Downloads
- Additional information
Description

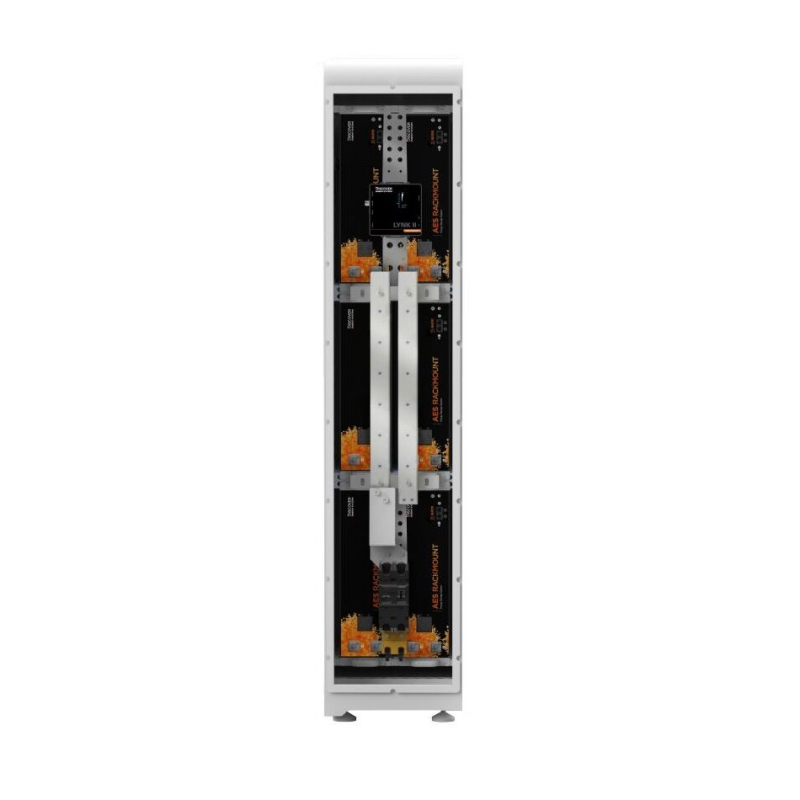

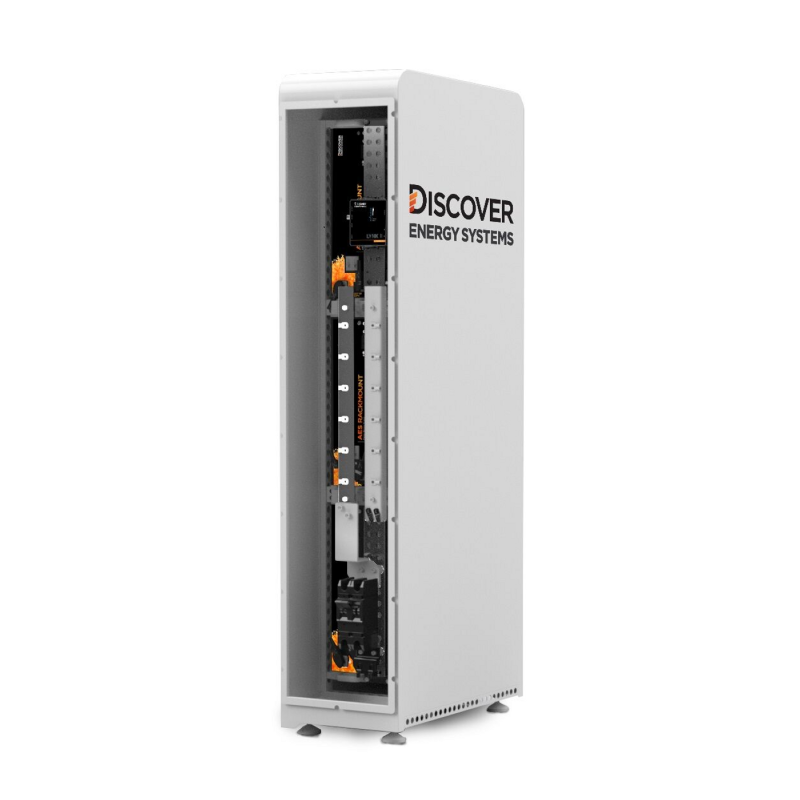

Indoors or outdoors, the AES RACKMOUNT 30 kWh Slimline Enclosure is economical, installs fast and offers the smallest footprint for 30k kWh of energy storage. Parallel up to four AES RACKMOUNT Slimline Enclosures for 120 kWh.
The Slimline Enclosure comes pre-assembled with a bus bar, and battery cables with Amphenol connectors and hosts up to six AES RACKMOUNT Battery Modules. Add a LYNK II Gateway for closed-loop integration with inverter-chargers.
Features:
- Indoor, Outdoor
- Batter combiner
- Battery cables
- Closed -loop comms
- Parallel 120kWh
Specifications:
- Compatibility: AES RACKMOUNT Battery Module 5.12 kWh 100 Ah
- Single Enclosure Configuration: AES RACKMOUNT Battery Module 5.12 kWh 100 Ah
- Parallel Enclosure Configuration: Up to Four AES RACKMOUNT 30 kWh Slimline Enclosures (122.8 kWh Max)
- Height (with footings): 66.75 inches
- Width: 26.8 inches
- Depth: 13.8 inches
- Weight: 176.37 lbs/ 80kg
- Environmental: NEMA 3R/ IP54
Additional information
| Weight | 176.4 lbs |
|---|---|
| Dimensions | 48 × 40 × 40 in |
