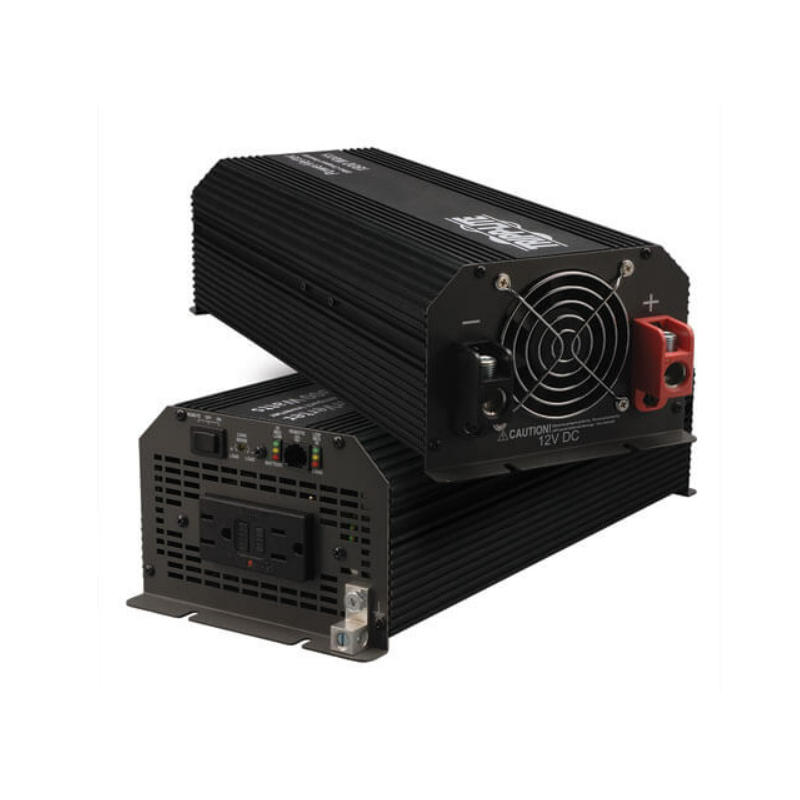

Tripp Lite 1800 Watt 12V GFCI Inverter PV-1800GFCI



Availability: Out of stock SKU: PV1800GFCI Categories: ,


Utilize your vehicle’s battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1800 watts of 120V AC power to 2 GFCI protected AC outlets from any 12V battery or automotive DC source. Includes a set of nut-and-bolt style DC terminals for simple installation. Super-compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level


Part Number: PV-1800GFCI



  • Converts 12V DC battery power to 120V AC power
  • 1800 watts continuous output power
  • 3600 watts peak output power (instantaneous)
  • 2 GFCI protected outlets (Ground Fault Circuit Interrupter)
  • Ultra-compact, lightweight all-metal design for efficient cooling
  • Diagnostic LEDs indicates low battery voltage level and load level
  • Low battery alarm with auto-shutoff
  • High-efficiency operation conserves batteries to prolong run time
  • Cooling fan regulates internal temperature and prolongs unit service life



  • Output watts: 1800W (continuous)/3600W (peak)
  • Output nominal voltage: 120V
  • Output voltage regulation: Maintains PWM sine wave
  • output voltage of 115 VAC (+/- 8 VAC)
  • Output frequency regulation: 60 Hz (+/- 3 Hz)
  • Outlet quantity / type: 2 AC outlets (GFCI protected)
  • Input connection type: Set of 2 DC bolt-down wiring terminals
  • Unit weight (lbs): 7.25
  • Unit Dimensions (HWD/in): 4 x 6 x 15
  • Product warranty: 1 year (Outside the U.S. and Canada, call for warranty information)

Additional information

Weight7.3 lbs

1 Year
