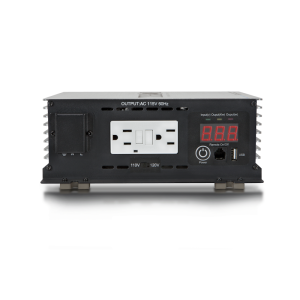

Thor 600 Watt Pure Sine Wave Inverter THPW600



Availability: Out of stock SKU: THPW600 Category:


Things we love about the Thor THPW600: small & compact size, hardwire capable, GFCI, USB, remote, LED display.


THPW600 Input Specifications:

  • DC input voltage rating: 12V DC
  • DC input voltage range: 10.5 to 16.5V DC
  • No load current draw: < 0.8 amps
  • Low battery voltage alarm : 10.5V DC
  • Low battery voltage shutdown : 9.5 V DC
  • Low battery voltage recovery : 12 V DC
  • High battery voltage shutdown : 16.5V DC
  • High battery voltage recovery : 14V DC
  • Fuse (internal): 40A×2(MAX)
  • Input reverse protection Yes


THPW600 Output Specifications:

  • Output voltage range: (Selectable) 120V AC (RMS) or 110V AC (RMS):
  • Output frequency: 60Hz
  • Output wave form: Pure Sine Wave
  • Max output power: 660W
  • Continue output power: 600W
  • Overload protection power: 1200W
  • Surge capacity (Peak power): 1200W
  • Pure Sine Wave Output: THD<3%
  • USB output: DC 4.75V-5.25V @ 0-2.1A


THPW600 General Characteristics

  • Display: Input voltage , Output Power, Fault Code Indicator
  • Efficiency (except power loss on the wire): >85%
  • Over load protection: Yes
  • Short circuit protection: Yes
  • Over temperature shutdown: ~65℃
  • Operating temperature range: -5-40℃
  • Storage temperature range: -20-50℃
  • Connector: DC cable
  • Cooling: By fan
  • AC Sockets: GFCI outlet / Hard wire Block


THPW600 Product Summary:

  • Bar Code Number: 852090008059
  • Packaging: Box
  • Dimension: 7.5L x 8.5W x 3.34″H
  • Net weight: 4.7lbs


THOR Pure Sine Wave inverters have set the standard with the way you deal with your mobile power needs, providing AC electricity. A power inverter converts the DC electricity from batteries into everyday AC power. With a THOR inverter you won’t need to rely on DC-powered electronics or a generator to have power for tools, electronics, or any AC power needs.

THOR Pure Sine Wave inverters are efficient and dependable and come in numerous sizes and power ranges to meet your mobile power demands. We offer compact, higher powered models that yield enough power for larger vehicles such as utility & work trucks, RV’s, boats, & renewable energy applications.

Model: THPW600
Name: PW Series
Spec.:12V DC to 115V AC (600W)

Additional information

Weight4.7 lbs
