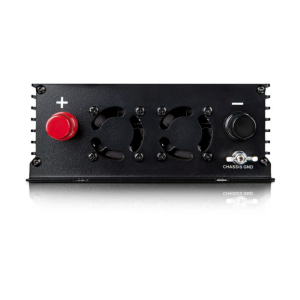

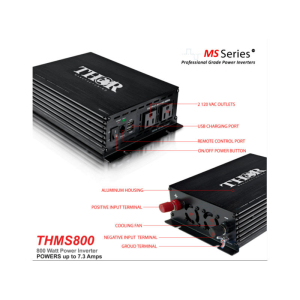

Thor THMS800-PPI 800 Watt Power Inverter

Description

Thor THMS800-PPI Specifications:

• Continuous output power: 800 Watts
• Surge power capability (peak power): 1600 Watts
• DC input / operating voltage: 11 to 16 Volts
• Output voltage: 120 Volts ac / Output frequency: 60 Hz / Output wave form: modified sine wave
• Battery low voltage shutdown: 10.5 +/- 0.5 Volts High input voltage protection: 15V
• No load current: < 0.8 Amps
• Full load efficiency: >85%
• AC Output Socket: Two Type 2 -3 prong
• Fuse protection

Thor THMS800-PPI Electronic Circuit Protection:

• Overload Protection – Inverter will automatically shut down if load exceeds inverter rating.
• Smart Surge Control – Inverter will attempt to start loads above the continuous rating for up to 10 milliseconds.
• Voltage Protection – Whenever the input exceeds 16 volts DC or is less than 9.5 volts, the inverter will automatically shutdown.
• Short Circuit Protection – Automatically shuts down until short circuit is removed.
• Thermal Cutoff – Automatically shuts down if internal temperature exceeds safe design parameters.

Thor THMS800-PPI Product Summary:

• Bar Code Number: 852090008332
• Packaging: Box

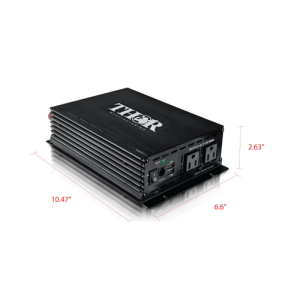

• Dimensions: 10.47L x 6.6W x 2.63″H
• Product Net Weight: 4.1 lbs
