Thor 1000 Watt 12 Volt DC to AC Power Inverter THMS1000

Description

Part Number: THMS1000

Features:

• 1000 watts continuous power
• 2000 watts peak power
• 115 volt AC three-prong outlets
• GFCI Red Fault LED Indicator
• GFCI Reset Pushbutton
• Bicolor Power/Fault LED Indicator
• ON/OFF Switch
• DC Input Voltage Indicator
• Output Power Indicator
• Remote Control Port
• USB Charging Port
• Grounding Post
• High-Speed Cooling Fans
• 2 Year Warranty

Specifications:

• Maximum continuous power: 1000 watts
• Surge capacity (peak power): 2000 watts
• DC input static current (no load): < 0.8 amp
• DC input over load current: 100-130 amps
• AC output wave form: Modified Sine Wave (MSW)
• Input voltage range: 11-15V
• High voltage shutdown: > 15.0V
• Low voltage alarm: 10V-11V
• Low voltage shutdown: 9.5-10.5V
• AC output voltage / frequency: 115V ± 10% 60 ± 3 Hz
• Overload power range: 1000W +5% – +25%
• USB port output: 5V ± 5%, 500mA
• Over voltage shutdown: > 15.0V
• Temperature protection: 65°C (149°F)
• Output connection: North American standard receptacles; USB
• Full load efficiency: > 80%
• Fan run: 45°C (113°F)
• AC output short circuit protection: automatic shut down
• Fuse: 35A x 4PCS
• Operating temperature: 0-40°C (32-104°F)
• Storage temperature: –10 – +50°C (14-122°F)
• Operating relative humidity: 10-90% RH
• Storage relative humidity: 10-95% RH

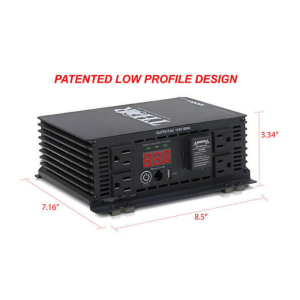

• Dimensions (L/W/H): 7.16 X 7.67 X 3.34 in
• Weight: 5.3 lbs
