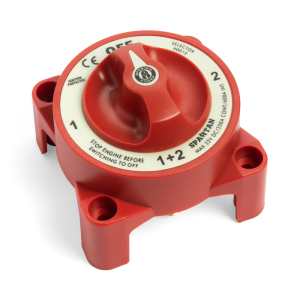

SP-BS350A-4P-COMBI-RED-E 800

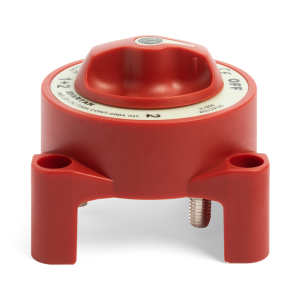

SP-BS350A-4P-COMBI-RED-E Side 800
SP-BS350A-4P-COMBI-RED-E Front 800
SP-BS350A-4P-COMBI-RED-E Back 800
SP-BS350A-4P-COMBI-RED-E 800
SP-BS350A-4P-COMBI-RED-E Side 800

Spartan Power 350A Battery Combiner Switch SP-BS350A-4P-COMBI-RED-E

$37.66

-

SKU: SP-BS350A-4P-COMBI-RED-E Categories: ,
View cart

Description

The Spartan Power mini on-off battery switch with knob switches a single battery to a single load group. The ignition protected battery switch is safe for installation aboard gasoline powered boats, RV and solar applications. Case design allows surface, front panel, or rear panel mounting. The Isolating cover with snap-on sections protects rear contacts. The Spartan Power battery switch has a crank rating of 1200A for 30 seconds, 600A for 5 minutes and 350A continuous rating.



Spartan Power 350A ON/OFF Battery Combiner Switch Specifications:

  • Switch Type: Selector 4 Position
  • Color: Red
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 600A (5 min)
  • Cranking Rating: 1200A (30 seconds)
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables 1.10in (27.94mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
  • Mounting Holes: Accept #1/4 inch Screw (M6)
  • Stud Material: Tinned Copper
  • Terminal Stud Size: 3/8″ – 16(M10)
  • Weight: 1.15 lbs
  • Dimensions: 3.85 x 3.85 x 3.097 Inches

Additional information

Weight2 lbs
