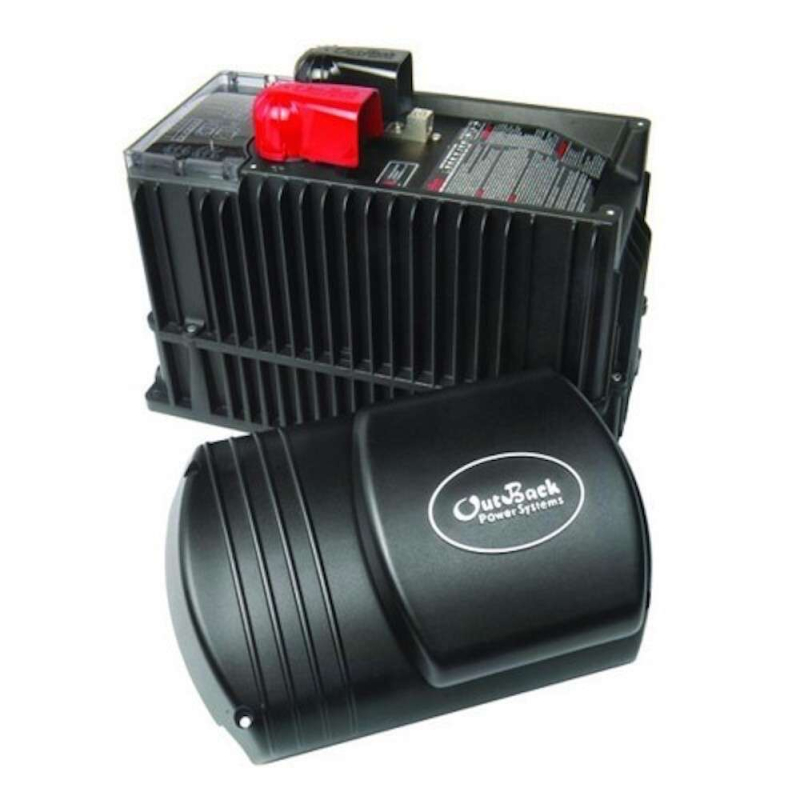

Outback FXR3048A 3000 Watt 48 Volt Sealed Turbo Inverter / Charger

Description

The FX series is designed to survive in environments that would normally destroy other inverter/chargers. Protection for internal components is provided by our die-cast aluminum chassis with a powder coated finish to prevent corrosion. Internal and external cooling fins allow for passive heat transfer, enabling peak operating efficiencies as high as 93% and looking cool while doing it. Water and small particles are kept out through the generous use of gaskets and 0-ring seals on all seams and openings. A protective conformal coating on all circuit boards provides the final line of defense against corrosion. The now standard externally mounted “TURBO” cooling system improves performance in hot conditions.

Part Number: FXR3048A

Specifications:

• Nominal DC Input Voltage: 48VDC
• Continuous Power Rating at 25° C: 3000 VA
• AC Voltage/Frequency: 120 VAC 60 Hz
• Continuous AC RMS Output at 25° C: 25 amps AC
• Idle Power (full): ~34 Watts
• Idle Power (search): ~9 Watts
• Typical Efficiency: 93%
• Total Harmonic Distortion (Typical): <2%
• Total Harmonic Distortion (Maximum): <5%
• Output Voltage Regulation: +/- 2.5%
• Maximum Output Current(Peak): 70 amps AC
• Maximum Output Current (RMS): 50 amps AC
• AC Overload Capability (Surge): 6000 VA
• AC Overload Capability (5 Second): 5400 VA
• AC Overload Capability (30 Minutes): 3200 VA
• AC Input Current Maximum: 60 amps AC
• AC Input Voltage Range (MATE Adjustable): 85 to 140 VAC
• AC Input Frequency Range: 54 to 66 Hz
• DC Input Voltage Range: 42 to 68 VDC
• Continuous Battery Charge Output: 35 amps DC
• Warranty: Standard 5 year / Optional 10 year
• Dimensions (H x W x L): 13″ x 8.25″ x 16.25″
• Weight: 62 lbs
