Magnum Energy Dual Backplate BP-D
Original price was: $150.00.$135.20Current price is: $135.20.
-
- Description
- Additional information
Description
Magnum Energy Part Number: BP-D

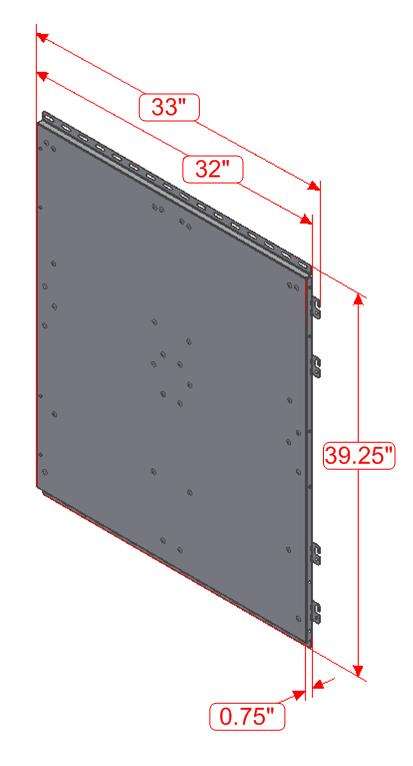

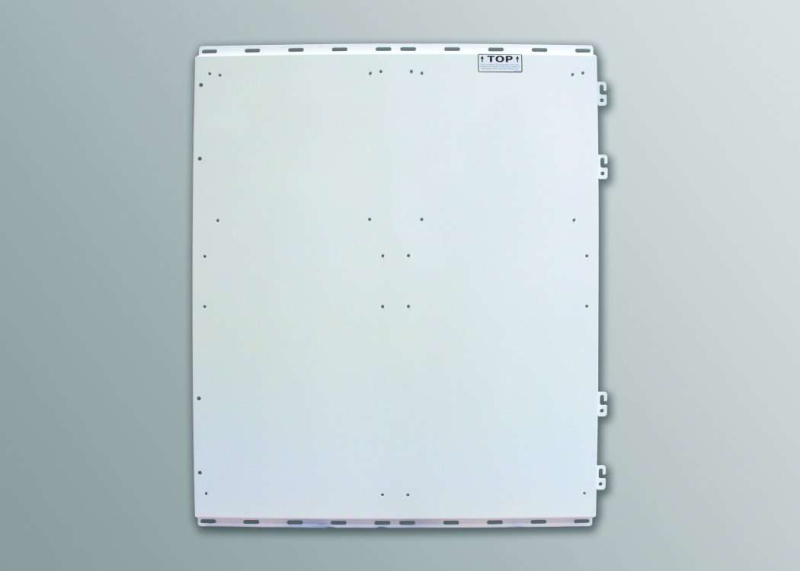

The BP-D is a single-piece, powder-coated steel backplate designed to accommodate two MP or MPX enclosures, two Magnum inverters, and two inverter hoods together; making the complete system appear more seamless. Designed with PEM (i.e. internally threaded) nuts, the backplate is shipped with ¼-20 x ¾ Hex head bolts for easily mounting the MP enclosure, a Magnum inverter, and the inverter hood.
This backplate also provides the necessary requirement to provide a noncombustible mounting surface required when mounting the inverters on a wall.
Works With:
MP Magnum Panels
Additional information
| Weight | 5 lbs |
|---|---|
| taxable | t |
| availability | Usually ships the same business day |
| keywords | BP-D, magnum energy dual backplate |
| model-number | BP-D |
| menu-name | Magnum Energy Dual Backplate |
| name-short | Magnum Energy Dual Backplate |
| condition | New |
| manufacturer-part-number | BP-D |
| page-title | Magnum Energy Dual Backplate |
| short-name | Magnum Energy Dual Backplate |
| classification | new |
| google-condition | New |
