Magnum Energy AC Load Diversion Controller ACLD-40

Magnum Energy AC Load Diversion Controller ACLD-40



Availability: Out of stock SKU: ACLD-40 Category:


The ACLD monitors the battery voltage of a backup battery bank, and if the voltage rises to a predetermined level, the ACLD connects a diversion load of sufficient size, to the battery or energy source to prevent the battery voltage from increasing any further. The controller will continue to engage and disengage the load as often as necessary to prevent battery overcharge.

An AC Load Diversion controller is used to divert excess energy to an AC load in an effort to keep the battery bank that is connected to a back-up inverter from being overcharged, when used in an AC Coupled application.

Magnum Energy Part Number: ACLD-40


  • Controls up to 4000 watts of excess power to prevent battery over-charge
  • Works with 12, 24, or 48 volt systems
  • Allows the use of common, resistive AC household loads instead of hard-to-find DC loads to divert excessive current
  • Easy access Inverter and Network ports
  • Standard RS485 MagNet protocol to communicate with Magnum inverters and remotes
  • Can utilize power generated from wind, solar, or hydro systems
  • Provides PWM (Pulse Width Modulation) voltage when powering diversion load to run load without flicker

Works With:

  • MS-PAE Series
  • MS-PE Series
  • MMP Panel System
  • MP Panel System

Electrical Specifications:

  • Frequency: 50/60 Hz
  • Input voltage: 240 VAC ± 10%
  • Output voltage: 0 – 240 VDC
  • Continuous power: 4000 VA

General Features & Capabilities

  • Listing: ETL Listed to UL 1741 – second edition and CSA C22.2 #107.1-01
  • Warranty: Three years (Five years when purchased with and installed on an MP/MMP system

Environmental Specifications:

  • Operating temperature: (-4° F to 140° F)
  • Nonoperating temperature: (-40° F to 158° F)
  • Operating humidity: 0 to 95% RH non condensing

Physical Specifications

  • Unit dimensions (w x h x d): 11.5” x 13.75” x 7”
  • Shipping dimensions (w x h x d): 13.6” x 15.8” x 9.3”
  • Mounting: Shelf (top or bottom up) or Wall (vents up)
  • Weight: 20 lb
  • Shipping weight: 23 lb
  • Max operating altitude: 15,000 feet


Additional information

Weight 20.1 lbs



Usually ships the same business day


Additional Resources: Magnum Energy ACLD-40 User Manual Magnum Energy ACLD-40 Data Sheet


acld-40, Magnum Energy AC Load Diversion Controller

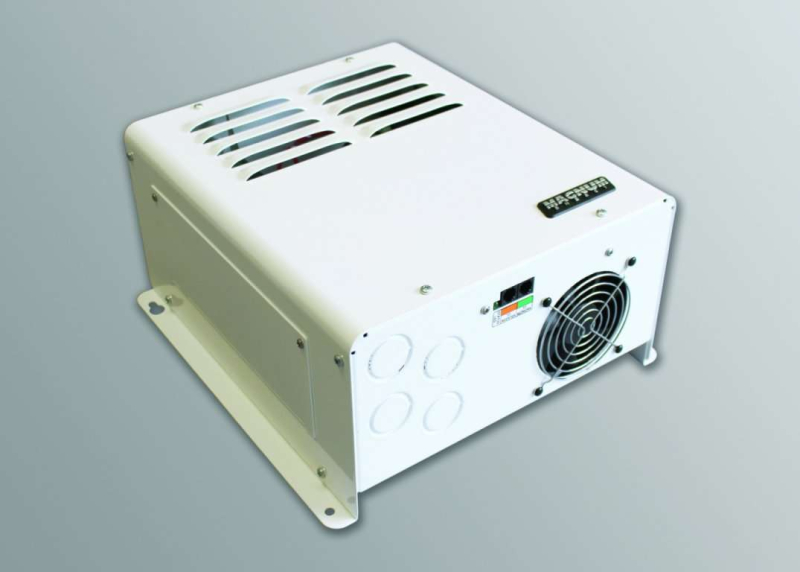

AC Load Diversion Controller (ACLD-40)
