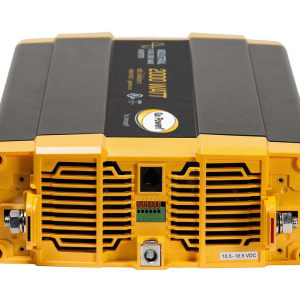

Go Power 2000 Watt 24V Pure Sine Inverter GP-ISW2000-24

Description

A solid choice for large loads that demand a clean, pure source of AC power, the Go Power!™ GP-SW2000 can run several appliances and still provide plenty of pure, clean power for the sensitive loads.

Features include a duplex GFCI receptacle with full overload protection and power save mode, Available with 12 or 24-volt input, and optional remote.

Part Number: GP-ISW2000-24

Features:

• 2000 Watts Continuous, 24 Volt DC Input
• Premium DC to AC pure sine wave power
• Wide voltage range
• Durable, low profile design
• Powersave mode
• Two GFCI-equipped outlets (2000W model only)
• Full overload protection
• 2 year warranty

Specifications:

• Continuous Output Power: 2000 Watts
• Maximum Surge Rating: 3500 Watts
• Output Waveform: Pure Sine Wave
• Output Voltage Range: ± 3% 100 – 120 VAC (Dip Switch Selectable)
• Input Voltage: 21 – 33 VDC
• Efficiency: 93%
• No Load Current Draw / Powersave: ≤ 1.0 A / < 0.05 A
• Input Protection: Over/Under Voltage, Reverse Polarity (Fused)
• Output Protection: Short Circuit, Overload, Over/Under Temperature
• Low Battery Alarm: ± 0.3V 21V
• Low Battery Shutdown: ± 0.3V 21V
• Operating Temperature Range: -4 ̊F – 104 ̊F (-20 ̊C – 40 ̊C)
• Storage Temperature Range: -22 ̊F – 158 ̊F (-30 ̊C – 40 ̊C)
• Cooling: Temperature and Load Controller Cooling Fan
• AC Output Connections: Dual GFCI Outlet
• Remote Power Option: Yes
• Dimensions (L x W x H): 17.45” x 9.76” x 3.27”
• Weight: 11.55 lbs
• Warranty: 2 Years
• Recommended Inverter Install Kits: GP-DC-KIT3 or Spartan Power Battery Cables
• Remotes (Optional): GP-ISW-R-12 / GP-SWR-A
• Regulations and Safety: UL 458, FCC Part 15 Class A
