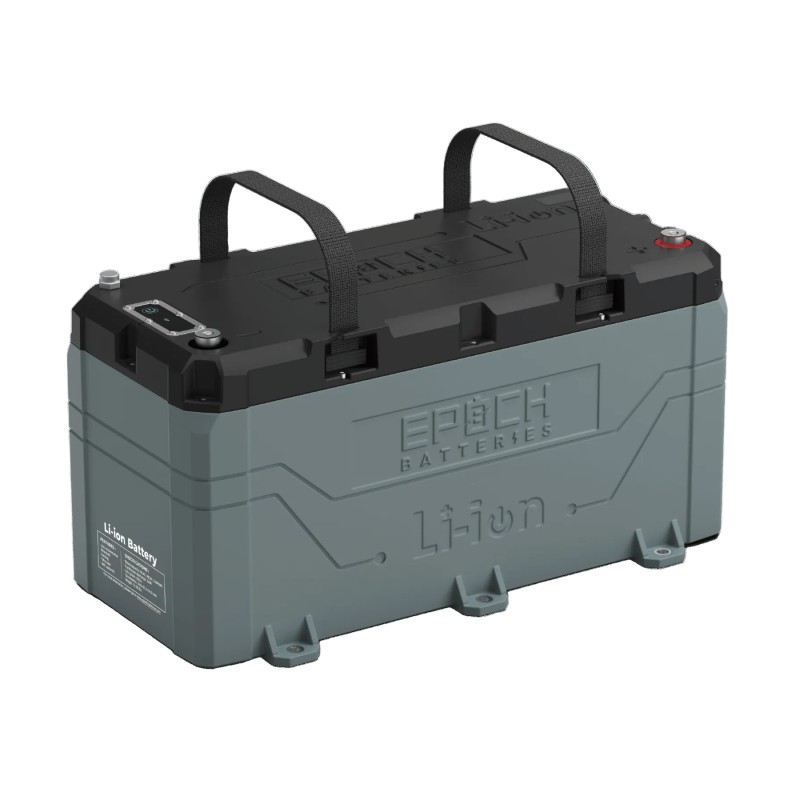

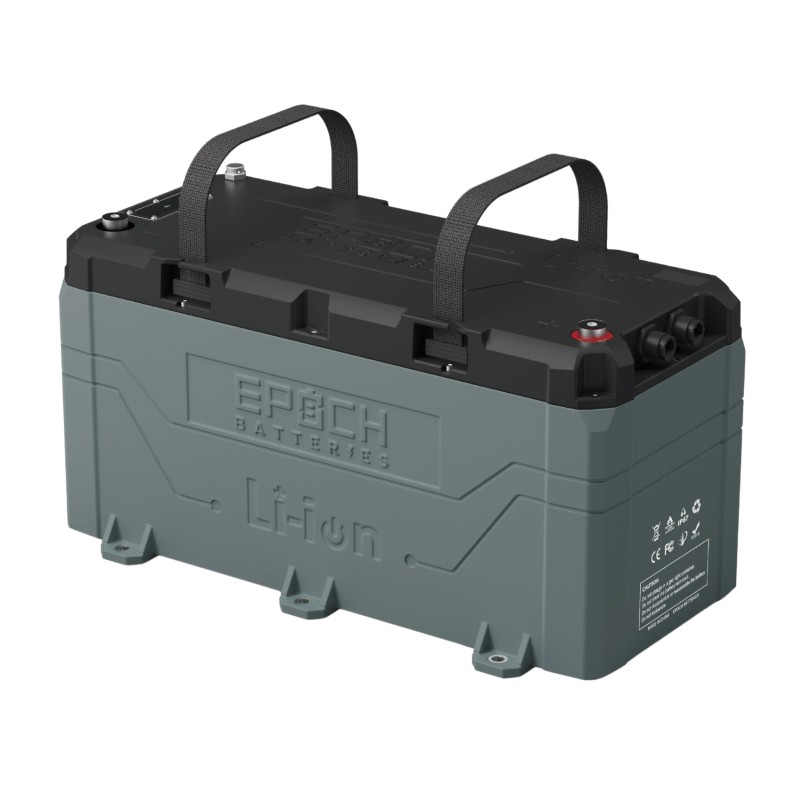

EPOCH 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery – Bluetooth, Heating, Waterproof

Configuration

Cell Configuration: 12S
Chemistry: LiFePO4

Current

Ah Capacity: 100Ah

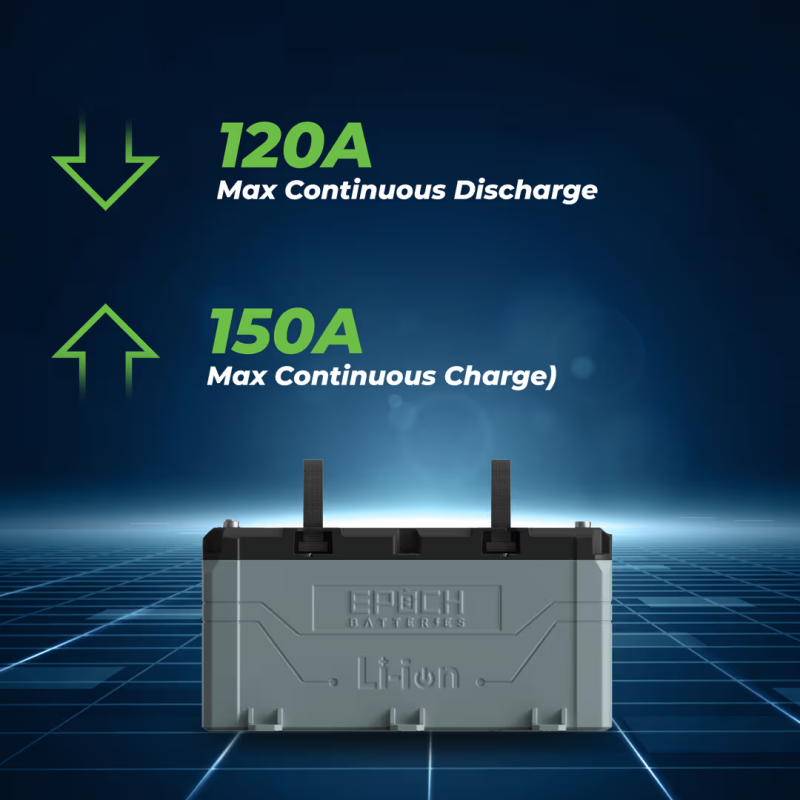

Max Continuous Discharge Amps: 120A
Max Charge Current Amps: 150A (10 Seconds)
Max Discharge Peak Current Amps: 200A (60 Seconds)
Series | Parallel: Max (4) in Parallel

Voltage

Voltage: 36V
Max Charge Voltage: 43.8V
Operating Voltage Range: 30 – 43.8V

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 75 (LBS)

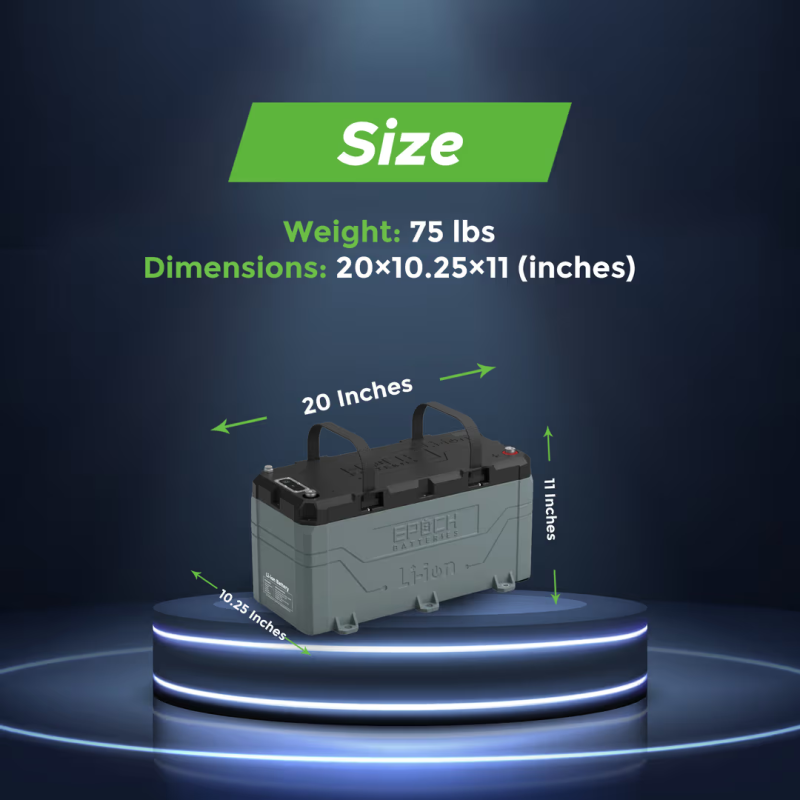

Dimensions
Length: 20 (inches)
Width: 10.25 (inches)
Height: 11 (inches)

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger’s manual or the manufacturer.

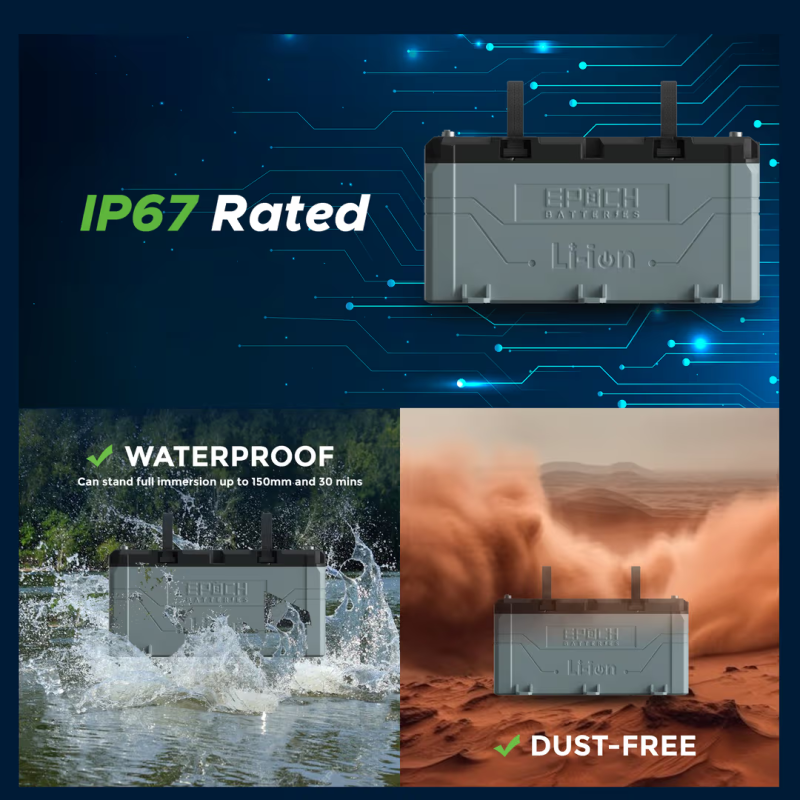

IP67

Experience worry-free adventures with our robust IP67 protection. Your battery is completely sealed against dust and can be safely immersed in water up to 1 meter deep for 30 minutes. Whether you’re caught in heavy rain or crossing streams, this military-grade protection ensures your power stays reliable.

• Fully Dustproof
• Waterproof up to 1m
• All-Weather Protection
• Submersible Design
