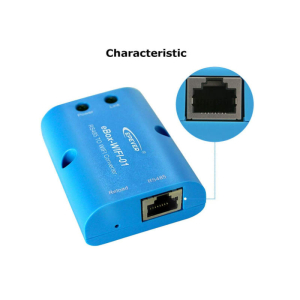

EPEVER WIFI Module Serial Server eBox-WIFI-01

Description

EPEVER WIFI Module Serial Server eBox-WIFI-01 is a kind of serial server that can make EPEVER’s MPPT solar controllers and inverter with a WIFI communication function, and carry out wireless monitoring, parameter settings, etc. by cooperating with mobile phone APP. Plug and play, simple and convenient set, it has many excellent features. For use with The XTRA, DuoRacer and TRACER Series charge controllers.

Main features：

• Realize wireless monitoring function of solar controller and inverter
• Support mobile phone APP, plug and play, simple and convenient to set
• Use high performance CPU with core M4
• Ultra-low power consumption and high speed data processing capability
• No need of external power supply
• Communication distance up to 50 m
• One-key restore the factory settings

Product Highlights

• Realize wireless monitoring function of solar controller and inverter use high performance CPU with core M4
• No need for an external power supply
• One-key restore the factory settings
• Support mobile phone APP, plug and play, simple and convenient to set
• Ultra-low power consumption and high-speed data processing capability
• Communication distance up to 50m

eBox-WIFI-01

• Input Voltage 5VDC: Direct powered by RS485 port
• Standby Power Consumption: 0.20W
• Operation Power Consumption: 0.25W
• Communication: ≤50m
• Distance: ≤50m
• Port Baud Rate: 300bps~230400bps(Default 115200)
• Communication: RS485 to WIFI
• Interface Type: RJ45
• Connecting Cable: Standard network cable (Parallel cable)
• Overall Dimension: 51*67*24.5mm
• Mounting Dimension: 41.2
• Mounting Hole Size: Φ3.2
• Working Temperature: -35~75℃
• Enclosure:  IP30
• Net Weight: 39g

eBox WIFI 1 Manual EN V2.0
