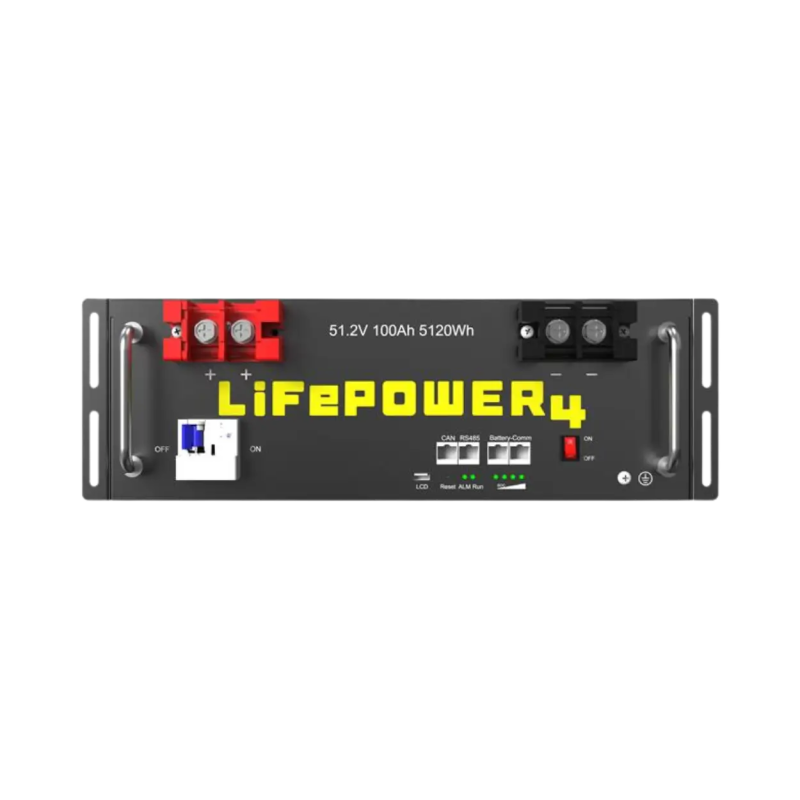

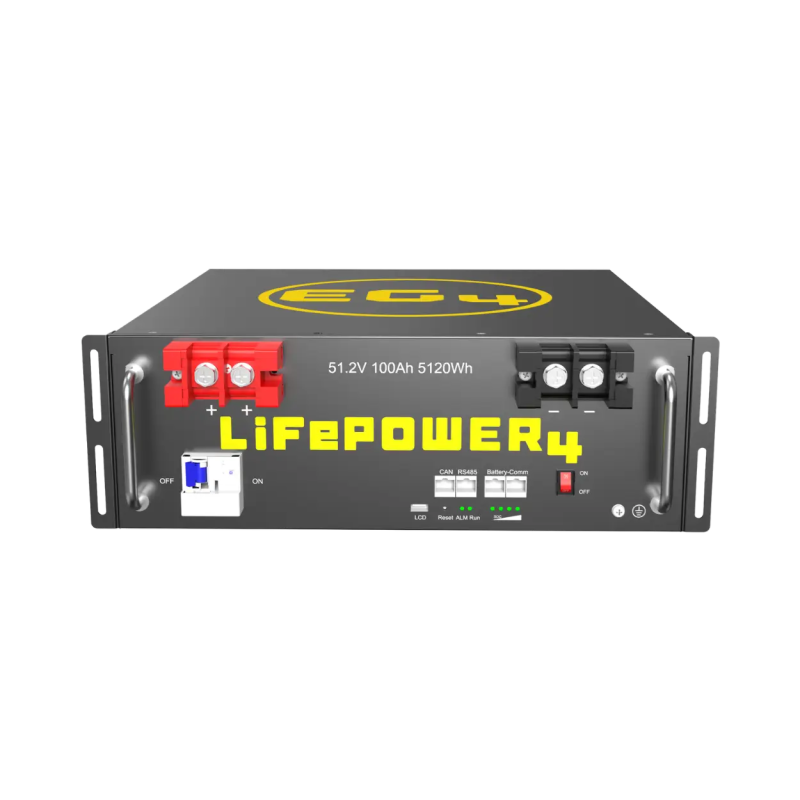

EG4 LifePower4 48V v2 100Ah Lithium Iron Phosphate Battery

Description

The EG4® LiFePower4 48V v2 battery retains the robust performance of the original model, now with enhanced features for improved user experience and system integration, including the newly added auto addressing feature. Built with 16 UL-recognized 3.2V LiFePO4 cells, this battery provides >6,000 cycles at 80% Depth of Discharge (DoD), a nominal voltage of 51.2V, and a 5.12kWh capacity. Its 100A Battery Management System (BMS) supports parallel connections of up to 64 units, making it adaptable for larger systems.

Features & Benefits

Built On a Proven Foundation:
Retains robust architecture and high performance of its predecessor.

Convenient Control:
Equipped with a BMS communication on/off switch

Customizable Integration:
New six position DIP switch allows convenient inverter and battery configuration

Streamlined Connectivity:
Additional terminal connections with two positive and two negative terminals

Broad Inverter Compatibility:
CAN bus and RS485 ports enable communication with a wider range of inverters

Built-In Safety Feature:
E-Stop (Emergency Stop) rapid shutdown functionality for secure operation in high-risk settings

Enhanced Safety:
Dual on-board fire arrestors for added peace of mind

Auto Addressing:
Now includes the auto-addressing feature for easy installation when communicating with other EG4 Electronics batteries and inverters in closed-loop communication.

Key Specifications

Nominal Voltage: 51.2V
Energy Capacity: 5.12kWh
Charge Capacity: 100Ah
BMS: Internal 100A Battery Management System
Certified Cells: 16 UL-recognized 3.2V cells in series.
Closed-Loop Support Up to 64 batteries
Total Capacity: 327.7kWh
Safety Certified: UL 1973, UL 9540A, and UL 9540 pending
Design Life: Tested for >6,000 deep discharge cycles at 80% Depth of Discharge (DoD)
Dimensions: 6.1×19×17.4 in (155×442×470mm)
Weight: 99.6 lbs. (45.2kg)
Warranty: 10 year
