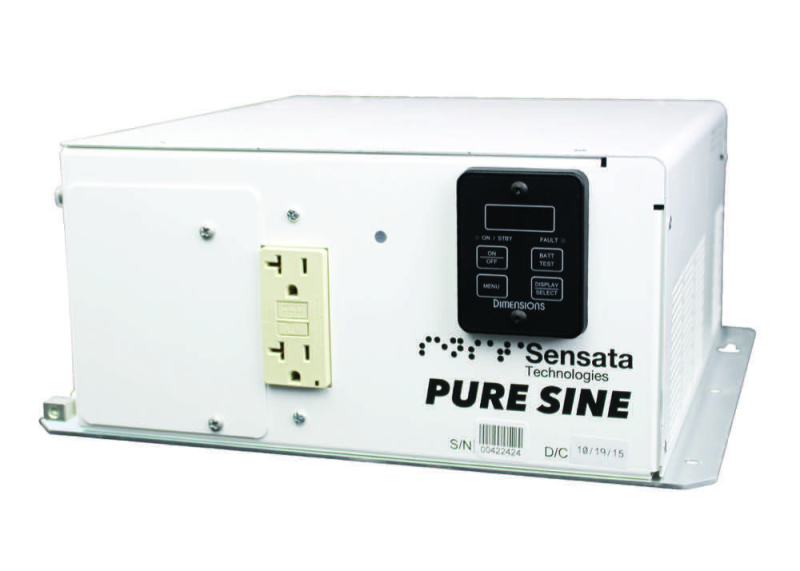

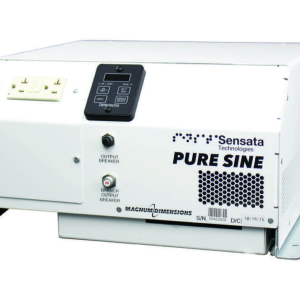

Dimensions 12NP15 1500 Watt, 12VDC Inverter / 75 Amp PFC Charger

Description

Dimensions Part Number: 12NP15

The NP Series is the newest Pure Sine Inverter Charger line from Dimensions. This series is available in 12, 24, and 48VDC input with AC output power ranging from 1000-3600 watts. The Power Factor corrected Charger puts out up to 60-150 amps DC depending on the model. Most models are UL/CUL 458 Listed and feature easy to use DC and AC connections.

The Charger is Power Factor corrected which means that it will make the most of incoming AC power to efficiently charge your batteries. Each system comes with an easy to use 7-segment LED display. The display provides status, input/output values, programming, and troubleshooting information. The display can also be used as a remote for use in another part of the vehicle by ordering an extension kit.

Specifications:

• Output Power: 1,500W
• Peak Watts: 2,500W
• Warranty: 4 Years, Advance Replacement first 2 years
• Output Voltage: 120 VAC
• Output Peak: 43amps
• Output Current: 12amps
• Output Waveform: Pure Sine
• Output Frequency: 60 Hz
• Motor Starting Capacity: 1/3 hp
• Input Voltage: 12
• Continuous Output Amps: 12amps
• Operating Temp: -20 to 65 C (0 to 149 F)
• Efficiency: Up to 88%
• Weight: 40 lbs
• Dimensions: 13.4” x 14.5” x 5.7”
• UL Certified: Yes
• Phase: Single
• Topology: Low Frequency
• Input Voltage Range: 10.5 to 17 VDC

Features:

• Power Factor Corrected, 3-Step, High Output, Temperature Compensated Charger
• 7-Segment LED Display, Reports I/O Values and Diagnostics
• Easy AC and DC Wiring
• Variable Speed Fan
• Built-In Bypass Switch
• Automatic Short Circuit/Overload Protection
• UL/CUL 458 Listed
