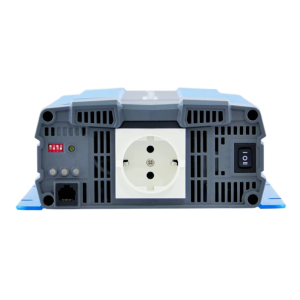

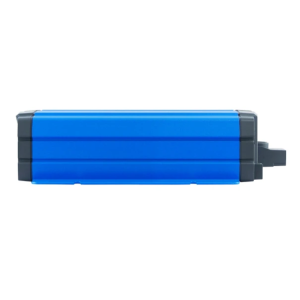

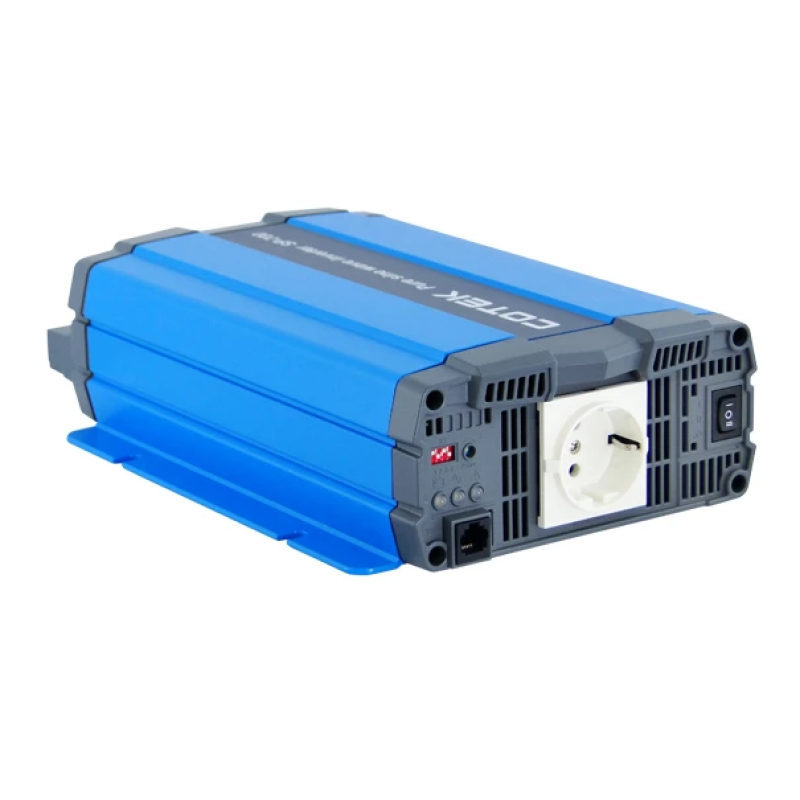

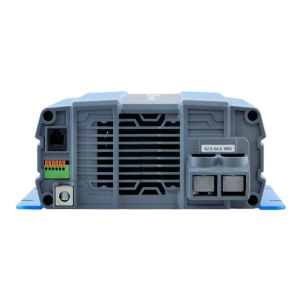

COTEK 700 Watt 24VDC Pure Sine Power Inverter SP-700-224

Description

COTEK Part Number: SP-700-224

Features:

• Pure sine wave output
• Power ON / OFF remote control (Green Terminal)
• Input & output fully isolation
• Temperature & load controlled cooling fan
• User friendly interface
• Output frequency 50/60 Hz selectable by DIP switch
• Output voltage DIP switch selectable
• Power saving mode by variable resister
• 3-color LED status indicators
• Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
• Output protection: Short Circuit / Overload / Over Temperature
• E13 / UL / CE / FCC approved

Specifications:

• AC Voltage: 200 /220 /230 /240VAC
• AC Regulation: ±5%
• Rated Power: 700VA
• Surge Power (1 Sec): <1230VA
• Maximum Output Power (1 Min): >700VA~810VA (100%~115%)
• Output Waveform: Pure Sine Wave (THD<3%@Normal Load)
• Frequency: 50 / 60 Hz ±0.5%
• DC Voltage: 24VDC
• Voltage Range: 21.0 ~ 33.0VDC
• NO Load Current: ≤0.8A@24VDC
• Power Saving Mode: <0.06A@24VDC
• Efficiency (Max.): 93%
• Input Under – Voltage Protection: 21.0 ±0.5VDC
• Input Under – Voltage Recovery: 25.0 ±0.5VDC
• Input Over – Voltage Protection: 33.0 ±0.5VDC
• Input Over – Voltage Recovery: 29.0 ±0.5VDC
• Output Overload: Shutdown output voltage, restart to recover
• Output Short: Shutdown output voltage, restart to recover
• Over Temperature: Heat sink temperature over 80°C ±5°C, shutdown output voltage, recover automatically after heat sink temperature goes down to 60°C ±5°C
• DC Input Reverse Polarity: By fuse
• Operating Temp.: -20°C ~ +40°C ; 60°C @ 40% power load
• Storage Temp.: -30°C ~ +70°C
• Storage Temp. & Humidity: 10 ~ 95% RH
• Safety Standards: Certified EN 60950-1
• EMC Standards: Certified EN 55022 class B; EN 55024; EN 6100-3-2, -3-3; EN 61000-4-2, 3, 4, 5, 6, 8, 11
• E-mark: Certified CISPR 25; ISO 7637-2
• LED Indicator: Input voltage level, output load level and faulty status
• Dry Contact Terminal: By relay
• Dimension (W x H x D): 200x83x330 mm / 7.87×3.27×12.99 inch
• Packing: 2.6kg; 6pcs / 16.6kg / 3.59CUFT
• Cooling: Temperature & load controlled cooling fan
• Application: Home and office appliances, portable power equipment, vehicle, yacht and off-grid Solar power systems …etc.
