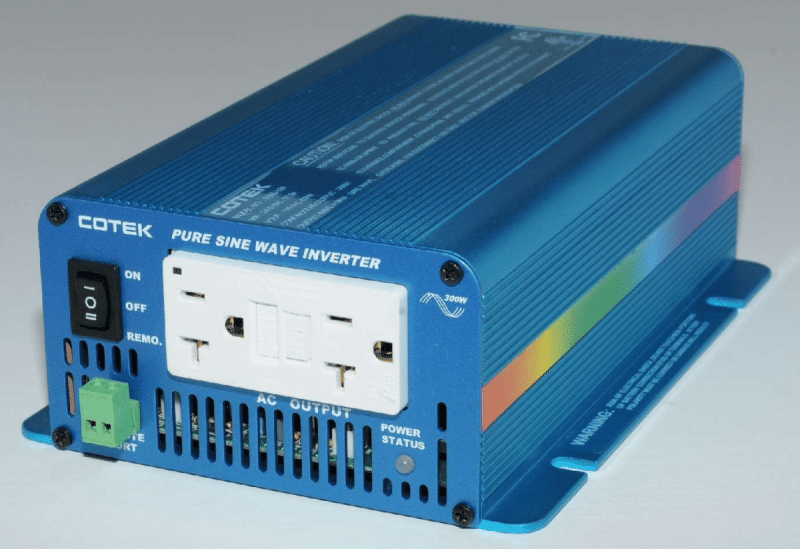

COTEK 300 Watt 24V Pure Sine Inverter S300-124

Description

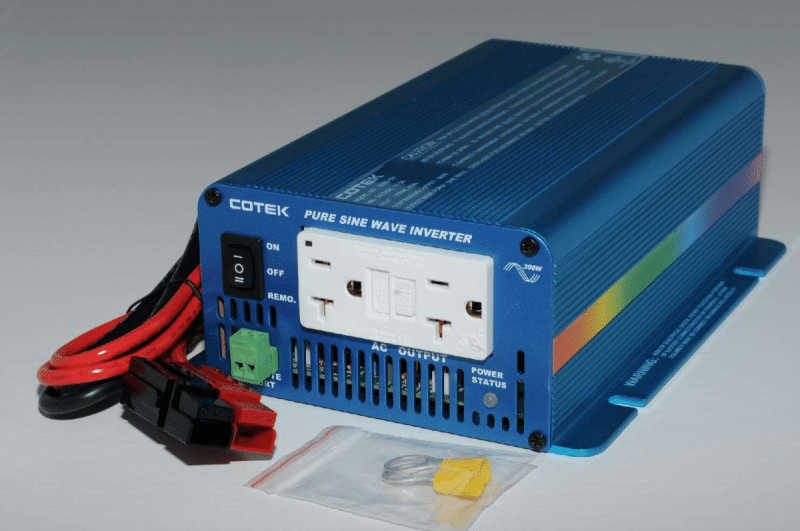

This high efficiency UL 458 approved microprocessor controlled DC-AC inverter converts 24 Volts DC to 300 watts of pure sine-wave AC power at 110 Volts, 60 Hz. The unit comes with a set of cables terminated in Anderson connectors and dual NEMA 5-20R GFCI receptacles (other types of input connectors and output AC sockets may be requested). Features include overload, short circuit, over-temperature, low battery, polarity reverse, under & over voltage protections.

Part Number: COTEK S300-124

Features:

• True sine wave output (THD 6% Typ.)
• Power ON-OFF remote control
• Input & output fully isolation
• Thermo control cooling fan
• Advanced microprocessor
• Input polarity reverse / under voltage / over voltage protections
• Output short circuit / overload / over temperature protections
• Capable of driving highly reactive and capacitive loads
• Tri-color indicators display input, output level & failure status
• UL / e-13 / CE / FCC approved

Specifications:

• AC Voltage: 100 / 110 / 120VAC
• Continuous Power: 300W
• Surge Power: 400W
• Waveform: True sine wave
• Frequency: 50 / 60 Hz
• AC Regulation: +/- 5%
• Standard Receptacles: NEMA5-15R / GFCI
• LED Indicator: Input voltage level, output load level and fault status
• No Load Current Draw: 0.28A
• DC Voltage: 24VDC
• Voltage Range: 21.0~30.0VDC
• Efficiency: 89%
• Fuse: 25A x 1
• Cooling: Thermostatically controlled cooling fan
• Remote Control: By external switch
• Battery Low Shutdown: 20V +/- .5V
• Over Load: Shut off output voltage, re-power on to recover
• Over Voltage: 30 ~ 32VDC
• Over Temp: Shut off output voltage, auto resets
• Output Short: Shut off output voltage, re-power on to recover
• Battery Polarity Reverse: By Fuse Open
• Safety Standards: UL458 (only for “GFCI” receptacles)
• Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
• EMI Conduction & Radiation: Compliance to FCC class B
• Dimensions(L x W x H): 9.3 x 6.1 x 2.8 in
• Weight: 7.7 lbs
