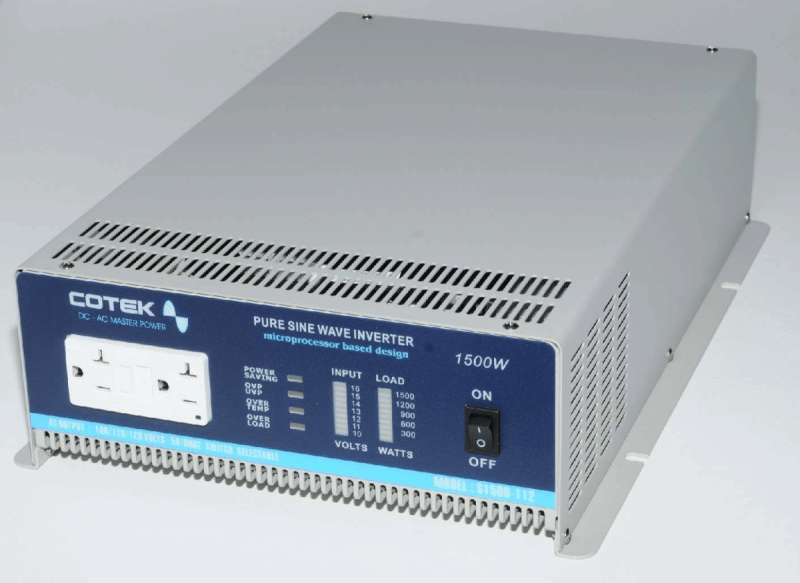

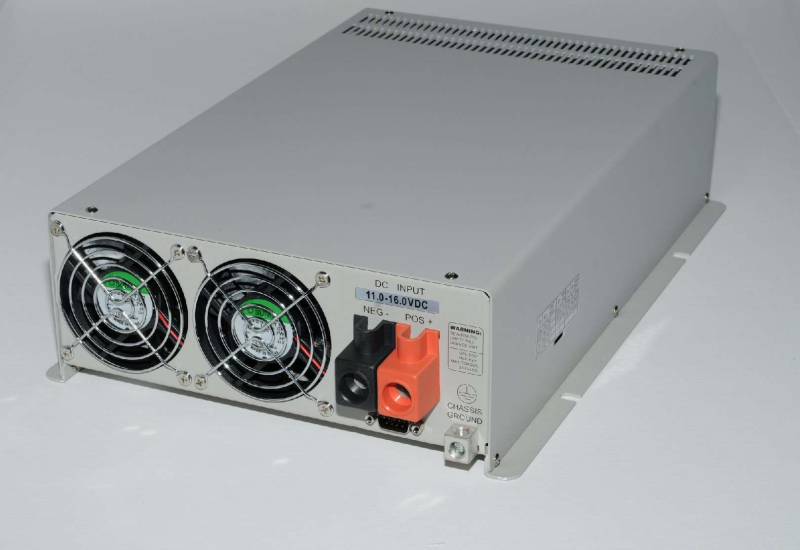

COTEK 1500 Watt 48 Pure Sine Inverter S1500-148

-10%

COTEK 1500 Watt 48 Pure Sine Inverter S1500-148

$554.00 $499.00

  • Description
  • Downloads
  • Accessories
  • Additional information

Description


This high efficiency UL 458 approved microprocessor controlled DC-AC inverter converts 12 Volts DC to 300 watts of pure sine-wave AC power at 110 Volts, 60 Hz. The unit comes with a set of cables terminated in Anderson connectors and dual NEMA 5-20R GFCI receptacles (other types of input connectors and output AC sockets may be requested). Features include overload, short circuit, over-temperature, low battery, polarity reverse, under & over voltage protections.



Part Number: COTEK S1500-148



Features:

  • True sine wave output (THD 3% Typ.)
  • Power ON-OFF remote control
  • Input & output fully isolation
  • Thermo control cooling fan
  • Advanced microprocessor
  • Input polarity reverse / under voltage / over voltage protections
  • Output short circuit / overload / over temperature protections
  • Capable of driving highly reactive and capacitive loads
  • Tri-color indicators display input, output level & failure status
  • UL / e-13 / CE / FCC approved



Specifications:

  • AC Voltage: 100 / 110 / 120VAC
  • Continuous Power: 1500W
  • Surge Power: 2000W
  • Waveform: True sine wave
  • Frequency: 50 / 60 Hz
  • AC Regulation: +/- 3%
  • Standard Receptacles: NEMA5-15R / GFCI
  • LED Indicator: Input voltage level, output load level and fault status
  • No Load Current Draw: 0.23A
  • DC Voltage: 48VDC
  • Voltage Range: 42.0~60.0VDC
  • Efficiency: 92%
  • Fuse: 10A x 2
  • Cooling: Thermostatically controlled cooling fan
  • Remote Control: By external switch
  • Battery Low Shutdown: 42V +/- .5V
  • Over Load: Shut off output voltage, re-power on to recover
  • Over Voltage: 61.2VDC
  • Over Temp: Shut off output voltage, auto resets
  • Output Short: Shut off output voltage, re-power on to recover
  • Battery Polarity Reverse: By Fuse Open
  • Safety Standards: UL458 (only for “GFCI” receptacles)
  • Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
  • EMI Conduction & Radiation: Compliance to FCC class B
  • Dimensions(L x W x H): 15.35 x 10.82 x 4.13 in
  • Weight: 17.99 lbs



Additional information

Weight 17.99 lbs
Warranty

2 Year
