Description

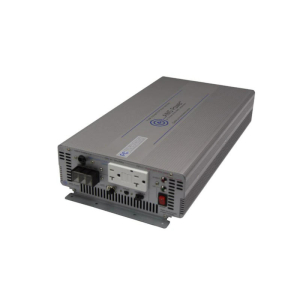

Aims Part Number: PWRIG200012120S

Features:

• 2000 Watt continuous power
• 4000 Watt surge
• 12 Volt DC input
• Pure sine wave
• 60hz or 50hz switch
• Highly efficient – improved ouptut at low voltage
• GFCI Dual Outlet
• External Digital display that shows battery voltage included
• Connector and cable for remote on/off switch
• Short circuit protection (GFCI and AC Breaker)
• On/off switch
• 5 Function Protection LED indicator
• AC Breaker
• Dual cooling fans thermally controlled
• Instruction manual
• 1 year tech support
• 1 Year Warranty Parts and Labor replacement

Specifications:

• Continuous output power: 2000 Watts
• Surge power capability (peak power): 4000 Watts
• dc input / operating voltage: 10.5-16 Volts
• Output voltage: 120 Volts ac
• Output voltage regulation: +/- 3%
• Output wave form: pure sine wave
• Output frequency: 50/60 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10.0 v +/- 0.5 Volts
• No load power consumption: fan off
• THD: <5%
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -4 degrees F
• Full load maximum operating temperature: 176 degrees F(automatic shutdown)
• GFCI Resetable AC Outlet
• High input voltage shutdown: 17V
• Low input voltage shutdown: 10V
• Internal blade fuse protection
• Product size (L x W x H): 16.54” x 8.86” x 3.50”
• Weight: 12.13 lbs

Aims PWRIG200012120S Owner’s Manual

1/0 AWT Cables & Fuses

Additional information
