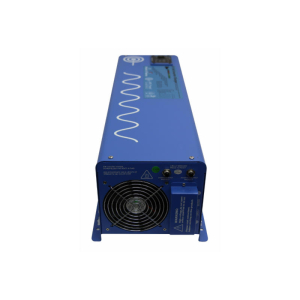

Aims 4000 Watt 24V Pure Sine Inverter Charger PICOGLF40W24V120V

Description

Aims Part Number: PICOGLF40W24V120V

Features:

• 4000 watt low frequency inverter
• 12000 watt surge for 20 seconds 300% surge capability
• 24 Volt DC
• Battery Priority Selector
• Terminal Block
• Marine Coated and Protected
• Multi Stage Smart charger 50 Amp (+/- 5A)
• remote panel available
• auto frequency
• 10msec typical transfer time
• optional 25W power save mode
• 7 battery type settings for charger

Inverter Output Specifications:

• Continuous Output Power: 4000 Watts
• Surge Rating: 12000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC

Input Specifications:

• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc
• High Voltage Alarm: 32.0Vdc
• High battery Voltage Restart: 31.0Vdc
• Idle Consumption: 5 amps DC
• Power Saver Mode Idle Consumption: < 1.88 amps DC depending on search mode

Charger Specifications:

• Output voltage: Depends on battery Type
• Charger Rate: 50A
• Over Charge Protection Shutdown 31.4V
• Selectable Charge setting based on battery type
• Adjustable charge current off-20%-100%
• Four Stage Smart Charger

Transfer Switch Specifications:

• 40 amp automatic transfer switch
• 10 ms (max)

Dimensions:

• Unit Weight: 62 lbs.
• Unit Size L x W x H: 23.5 x 8.59 x 7.05 inches
• Shipping Weight: 72 lbs.
• Shipping L x W x H 29.13 x 12.40 x 11.81 inches
