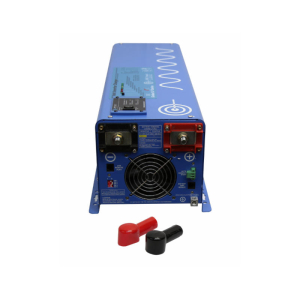

Aims 4000 Watt 12V 120/240VAC PS Inverter Charger PICOGLF40W12V240VS

Description

Aims Part Number: PICOGLF40W12V240VS

Features:

• 4000 watt low frequency inverter
• 12000 watt surge for 20 seconds 300% surge capability
• Split Phase 120/240 Vac output
• Battery Priority Selector
• Terminal Block
• Marine Coated and Protected
• Multi Stage Smart charger 100 Amp
• Remote panel available
• Auto frequency
• 10msec typical transfer time
• Optional 25W power save mode
• 7 battery type settings for charger

Inverter Output Specifications:

• Continuous Output Power: 4000 Watts
• Surge Rating: 12000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Split Phase 120/240 Vac output 50hz or 60hz
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC

Input Specifications:

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc
• High Voltage Alarm: 16.0Vdc
• High battery Voltage Restart: 15.5Vdc
• Idle Consumption: 3.47 amps DC
• Power Saver Mode Idle Consumption: < 0.53 amps DC

Charger Specifications:

• Output voltage: Depends on battery Type
• Charger Rate: 100A
• Over Charge Protection Shutdown 15.7V
• Selectable Charge setting based on battery type
• Adjustable charge current off-20%-100%
• Four Stage Smart Charger

Transfer Switch Specifications:

• 40 amp automatic transfer switch
• 10 ms (max)

Dimensions:

• Unit Weight: 77 lbs.
• Unit Size L x W x H: 23.5 x 8.5 x 7.0 inches
• Shipping Weight: 82 lbs.
• Shipping L x W x H 30.5 x 14.5 x 13.75 inches
