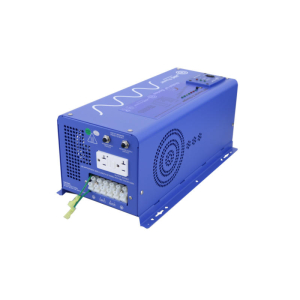

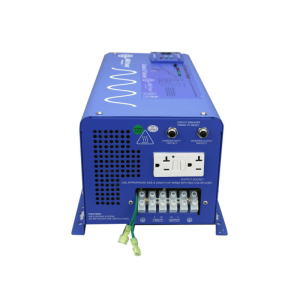

Aims 3000 Watt 12V Pure Sine Inverter Charger PICOGLF30W12V120VR
$1,061.00
-
- Description
- Downloads
- Accessories
- Additional information
Description
Aims Part Number: PICOGLF30W12V120VR
Features:
- 3000 watt low frequency inverter
- 9000 watt surge for 20 seconds -3x surge capability
- Battery Priority Selector
- Terminal Block
- GFCI
- Marine Coated and Protected
- Multi Stage Smart 100 Amp charger
- remote panel available
- auto gen start
- auto frequency
- 10msec typical transfer time
- optional 25W power save mode
- 7 battery type settings for charger
Inverter Output Specifications:
- Continuous Output Power: 3000 Watts
- Surge Rating: 9000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
Input Specifications:
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc
- High Voltage Alarm: 16.0Vdc
- High battery Voltage Restart: 15.5Vdc
- Idle Consumption: < 10 amps AC
- Power Saver Mode Idle Consumption: < 1 amps AC
Charger Specifications:
- Output voltage: Depends on battery Type
- Charger Rate: 100A
Dimensions:
- Unit Weight: 64 lbs.
- Unit Size L x W x H: 23.54 x 8.59 x 7.05 inches
- Shipping Weight: 68 lbs.
- Shipping L x W x H 29.13 x 12.40 x 11.81 inches
Additional information
| Weight | 64 lbs |
|---|---|
| Warranty | 1 Year |
