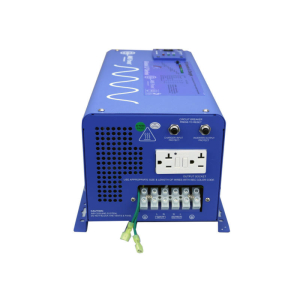

Aims 2000 Watt 24V Pure Sine Inverter Charger PICOGLF20W24V120VR

-10%

Aims 2000 Watt 24V Pure Sine Inverter Charger PICOGLF20W24V120VR

$679.00 $608.00

Out of stock

  • Description
  • Downloads
  • Accessories
  • Additional information

Description



Part Number: Aims PICOGLF20W24V120VR



Features:

  • 2000 watt low frequency inverter
  • 6000 watt surge for 20 seconds 300% surge capability
  • Battery Priority Selector
  • Terminal Block
  • Marine Coated and Protected
  • remote panel available
  • auto frequency
  • 10msec typical transfer time
  • optional 25W power save mode
  • 7 battery type settings for charger



Inverter Output Specifications:

  • Continuous Output Power: 2000 Watts
  • Surge Rating: 6000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC



Input Specifications:

  • Nominal Input Voltage: 24.0Vdc
  • Minimum Start Voltage: 20.0Vdc
  • Low Battery Alarm: 21.0Vdc-22.0Vdc
  • Low battery Trip: 20.0Vdc-21.0Vdc
  • High Voltage Alarm: 32.0Vdc
  • High battery Voltage Restart: 31.0Vdc
  • Idle Consumption: < 2.5 amps AC
  • Power Saver Mode Idle Consumption:



Charger Specifications:

  • Output voltage: Depends on battery Type
  • Charger Rate: 30A
  • Over Charge Protection Shutdown 31.4V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger



Transfer Switch Specifications:

  • 30 amp automatic transfer switch
  • 10 ms (max)



Dimensions:

  • Unit Weight: 41 lbs.
  • Unit Size L x W x H: 17.40 x 8.59 x 7.05 inches
  • Shipping Weight: 47 lbs.
  • Shipping L x W x H 22.83 x 12.40 x 11.81 inches

Additional information

Weight 41 lbs
Warranty

1 Year
