Description

Part Number: Aims PICOGLF20W12V120VR

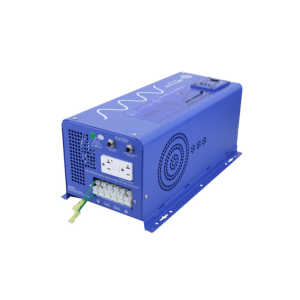

This 2000 watt low frequency AIMS Power inverter charger is three products in one.

• The inverter transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.
• A built-in 30 amp transfer switch, which will automatically detect when you’re switching from shore power to battery-bank power.
• It also has a built-in 70 amp battery charger which uses AC power, like from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.

Combine this inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.

Features:

• 2000 watt low frequency inverter
• 6000 watt surge for 20 seconds 300% surge capability
• Battery Priority Selector

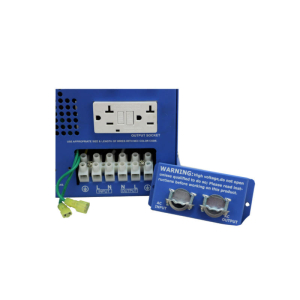

• Terminal Block
• Marine Coated and Protected
• remote panel available
• auto frequency
• 10msec typical transfer time
• optional 25W power save mode
• 7 battery type settings for charger

Inverter Output Specifications:

• Continuous Output Power: 2000 Watts
• Surge Rating: 6000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage: 100-110-120Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC

Input Specifications:

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc
• High Voltage Alarm: 16.0Vdc
• High battery Voltage Restart: 15.5Vdc
• Idle Consumption: 28 Watts
• Power Saver Mode Idle Consumption: < 1 amps AC

Charger Specifications:

• Output voltage: Depends on battery Type
• Charger Rate: 70A
• Over Charge Protection Shutdown 15.7V
• Selectable Charge setting based on battery type
• Adjustable charge current off-20%-100%
• Four Stage Smart Charger

Transfer Switch Specifications:

• 30 amp automatic transfer switch
• 10 ms (max)

Dimensions:

• Unit Weight: 41 lbs.
• Unit Size L x W x H: 17.40 x 8.59 x 7.05 inches
• Shipping Weight: 47 lbs.
• Shipping L x W x H 22.83 x 12.40 x 11.81 inches

Aims PICOGLF20W12V120VR Owner’s Manual

REMOTELF – Remote Switch with LCD

1/0 AWT Cables & Fuses
