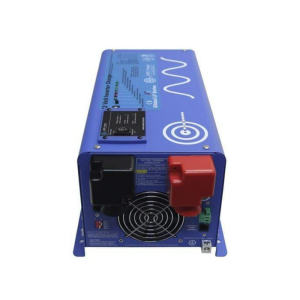

Aims 1500 Watt 12V Pure Sine Inverter Charger PICOGLF15W12V120VR

-10%

Aims 1500 Watt 12V Pure Sine Inverter Charger PICOGLF15W12V120VR

$565.00 $509.00

  • Description
  • Downloads
  • Accessories
  • Additional information

Description



Part Number: PICOGLF15W12V120VR

Features:

  • 1500 watt low frequency inverter
  • 4500 watt surge for 20 seconds 300% surge capability
  • AC Input Cable
  • GFCI outlet
  • Marine Coated and Protected
  • Multi Stage Smart charger 50 Amp
  • Remote panel available
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger



Inverter Output Specifications:

  • Continuous Output Power: 1500 Watts
  • Surge Rating: 4500 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Output Voltage: 120Vac
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC



Input Specifications:

  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • High battery Voltage Restart: 15.5Vdc
  • Idle Consumption: 1.13 amps DC
  • Power Saver Mode Idle Consumption:



Charger Specifications:

  • Output voltage: Depends on battery Type
  • Charger Rate: 50A
  • Over Charge Protection Shutdown: 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger



Transfer Switch Specifications:

  • 30 amp auotmatic transfer switch
  • 10 ms (max)



Dimensions:

  • Unit Weight: 37.5 lbs.
  • Unit Size L x W x H: 16.0 x 8.75 x 7.38 inches
  • Shipping Weight: 42 lbs.
  • Shipping L x W x H: 20.75 x 12.75 x 12.5 inches

Additional information

Weight 37.5 lbs
Warranty

1 Year
