6 Pack of Aims 250 Watt Micro Grid Inverters Package PIGRIG2506T

Description

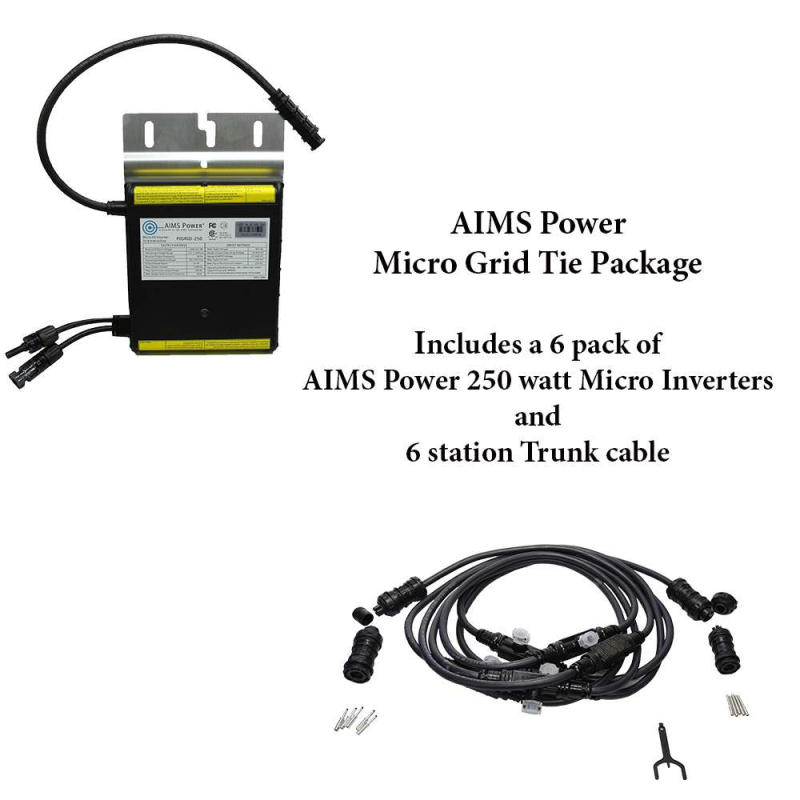

Included in this microinverter package:

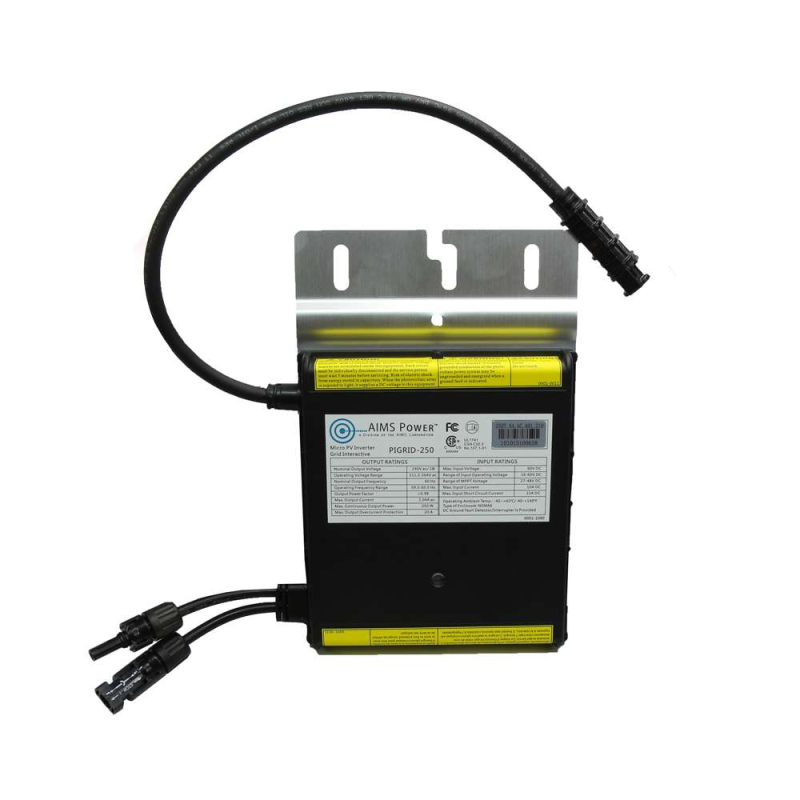

• QTY 6 PIGRID250 – 250 watt micro grid tie inverters
• PIGRID250-T – trunk cables for PIGRID250 connection
• Free Shipping

PIGRIG250 Features:

• Wireless Communication
• 15 year warranty

Mechanical Data

• Operating Temperature Range (℃): -40 ~ +85
• Ambient Temperature Range (℃): -40 ~ +65
• Dimensions (W X H X D): 6.5 X 7.2 X 1.1in
• Weight: 7.30 lbs
• Enclosure rating: NEMA6
• Cooling: Natural convection

AC Output Specifications

• Rated output current: 1.04A
• Rated output power: 250 Watts
• Frequency: +/- 0.1 Hz
• Nominal frequency/range (Hz): 60/57-60.5
• Nominal output voltage/range (V): 240/211-264
• Power factor: >0.99
• Output current harmonic distortion: <3%
• Maximum output overcurrent protection (A): 20
• Maximum Units per 20A Branch: 14
• Maximum output fault current (ac) and duration: 66.67 Apk, 2.13 ms of duration, 11.22 Arms
• Trip limit and trip time accuracy : Voltage: +/- 1%
• Alternate Trip Time +/- 50 ms

DC Input Specifications:

• MPPT voltage range (V): 27-48
• Recommended PV module power (STC) range: 200-310 Watts
• Operating voltage range: 16-60 Volts
• Maximum input current: 10A
• Maximum input voltage: 60 Volts
• Maximum input source back feed current to input source: -36A
