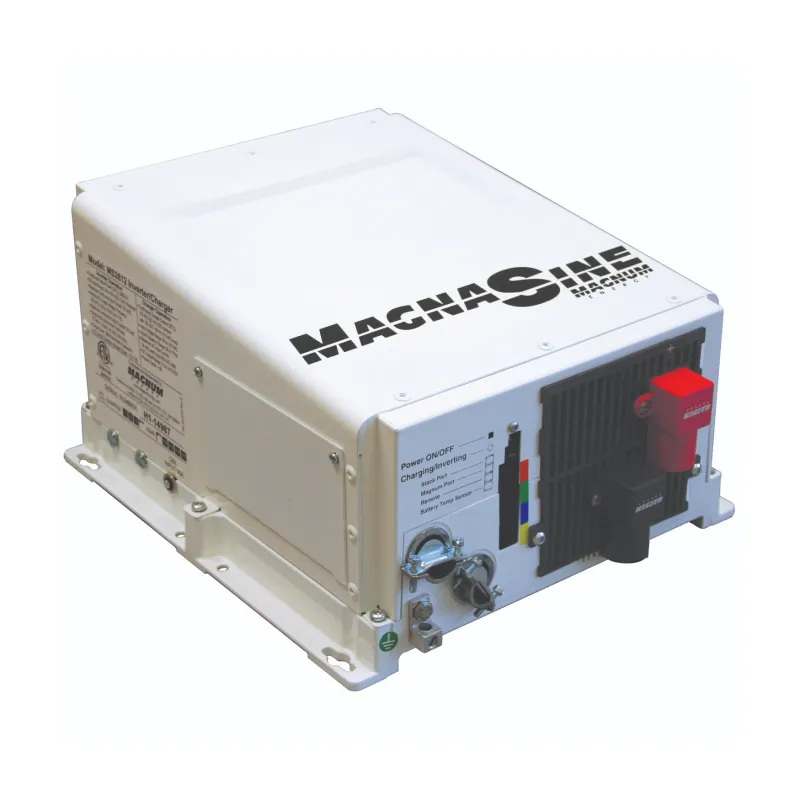

Magnum Energy 2800 Watt 12V Pure Sine Inverter Charger MS2812

-10%

Magnum Energy 2800 Watt 12V Pure Sine Inverter Charger MS2812

$2,199.00 $1,983.20

  • Description
  • Additional Information
  • Reviews (0)

Product Description

The MS Series Inverter/Charger is a pure sine wave inverter designed specifically for the most demanding mobile and off grid applications. The MS Series is powerful, easy-to-use, and best of all, cost effective. Install the MS Series in four easy steps: simply connect the inverter’s output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter’s easy-to-reach terminal block, connect the batteries, and switch on the power.

There are two modes of operation associated with an inverter/charger:



Inverter Mode:

  • Direct current (DC) from the vehicle’s batteries is transformed into alternating current (AC) for use with you household electrical appliances.



Charger Mode:

  • Alternating current ( AC) is taken directly from shore power (or other AC sources) and passed directly to your household appliances . At the same time, the incoming AC is also converted to DC to recharge the vehicle’s batteries.



Part Number: MS2812



Features:

  • Warranty: Three years
  • Transfer relay capability: 2 legs at 30 A for 120 V/30 A or 240 V/60 A service
  • Five stage charging capability: Bulk, Absorb, Float, Equalize (requires remote) & Battery Saver™
  • Battery temperature compensation: Yes, 15 ft Battery
  • Temp Sensor: standard
  • Remote available (optional): Yes, MM-RC or ME-RC
  • Internal cooling: 0 to 120 cfm variable speed drive
  • Over current protection: Yes, with two overlapping circuits
  • Over temp protection: Yes on transformer, MOSFETS & battery
  • Conformal coating on PCB’s for corrosion protection: Yes
  • Powder coated chassis & top for corrosion protection: Yes
  • Stainless steel fasteners for corrosion protection: Yes
  • Dual AC branch rated output breakers: AC breakers in 15 or 20A
  • Listings: ETL Listed to UL/cUL 458, UL 1741, CSA C22.2 #107.1-01, meets KKK-A-1822E standard



Specifications:

  • Input battery voltage range: 9 – 17 VDC
  • Nominal AC output voltage: 120 VAC
  • Output frequency and accuracy: 60 Hz ± 0.04%
  • Total Harmonic Distortion (THD): < 5%
  • 1 msec surge current (amps AC): 70
  • 100 msec surge current (amps AC): 40
  • 5 sec surge power (real watts): 3900
  • 30 sec surge power (real watts): 3800
  • 5 min surge power (real watts): 3200
  • 30 min surge power (real watts): 3000
  • Continuous power output at 25° C: 2800 VA
  • Rated input battery current: 267 ADC
  • Inverter efficiency (peak): 88%
  • Transfer time: 16 msecs
  • Search mode (typical): 7 watts
  • Charger Continuous output at 25° C: 125 ADC
  • Charger efficiency: 85%
  • Charger Power factor: > .95
  • Charger Input current at rated output (AC amps): 18
  • No load (120 VAC output, typical): 30 watts
  • Waveform Pure Sine Wave
  • Dimensions (H x W x D) : 13.75” x 12.65” x 8”
  • Unit Weight: 55lb



Additional Information

Weight 55 lbs
Warranty

3 Year
