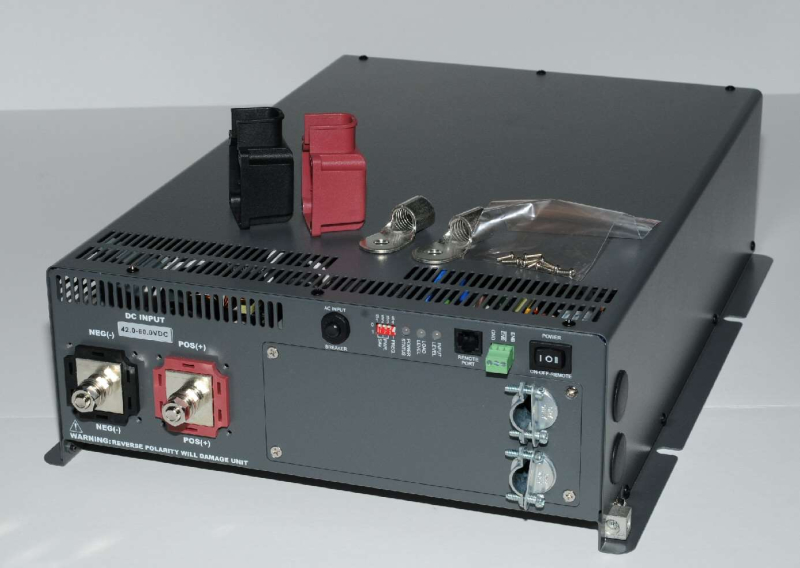

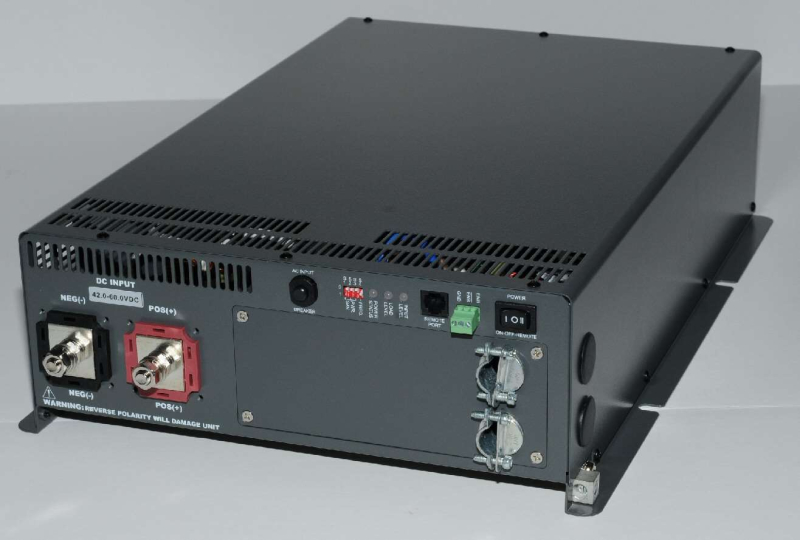

COTEK 2500 Watt 24V PSW Inverter with Transfer Switch ST2500-124

-10%

COTEK 2500 Watt 24V PSW Inverter with Transfer Switch ST2500-124

$1,225.00 $1,099.00

Out of stock

  • Description
  • Downloads
  • Accessories
  • Additional Information
  • Reviews (0)

Product Description

This high efficiency microprocessor controlled DC-AC inverter converts 24 Volts DC (Nominal) to 2500 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with a built-in 35 Amp transfer switch and 35 Amp circuit breaker. Input battery cable lugs are provided and the AC output is obtained through hardwire connection. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the safety standards of the unit conform to UL-458 specifications.



Part Number: COTEK ST2500-124



Features:

  • True sine wave output (THD < 3%)
  • Power ON-OFF remote control
  • Input & output fully isolation
  • Load control cooling fan
  • Advanced microprocessor
  • Output frequency 50/60 Hz switch selectable
  • Low power saving mode to conserve energy
  • Built-in transfer switch and AC circuit breaker
  • ROF(remote override function) or ignition lockout function option
  • Speed up transfer time & sync operation with utility AC source
  • Input polarity reverse / under voltage / over voltage protections
  • Output short circuit / overload / over temperature protections
  • Tri-color indicators display input, output level & failure status
  • e-13 / CE / FCC approved



Specifications:

  • AC Voltage: 100 / 110 / 120VAC
  • Continuous Power: 2500W
  • Surge Power: 5000W
  • Waveform: True sine wave (THD < 3%)
  • Frequency: 50 / 60 Hz selectable by DIP switch
  • AC Regulation: +/- 3%
  • Standard Receptacles: HARDWIRE
  • LED Indicator: Input voltage level, output load level and fault status
  • No Load Current Draw: 1.53A
  • Stand By Current Draw: 0.30A
  • DC Voltage: 24VDC
  • Voltage Range: 21.0~30.0VDC
  • Efficiency: 91%
  • Fuse: 20A x 10
  • Circuit Breaker: 35 Amps
  • Synchronous AC Transfer: Yes
  • Transfer Switch: 35 Amps
  • Transfer Time: Inverter to utility AC:8~10 msec.; Utility AC to inverter:12~14 msec
  • Cooling: Loading controlled cooling fan
  • Remote Control: CR6 / CR8 optional
  • Battery Low Voltage Alarm: 22VDC
  • Battery Low Shutdown: 21VDC
  • Over Load: Shut off output voltage, re-power on to recover
  • Over Voltage: 30.6VDC
  • Over Temp: Shut off output voltage, auto resets
  • Output Short: Shut off output voltage, re-power on to recover
  • Battery Polarity Reverse: By Fuse Open
  • Safety Standards: Meet UL458
  • Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
  • EMI Conduction & Radiation: Compliance to FCC class A
  • Dimensions(L x W x H): 18.2 x 13 x 4.53 in
  • Weight: 26.4 lbs



Additional Information

Weight 26.4 lbs
Warranty

2 Year
